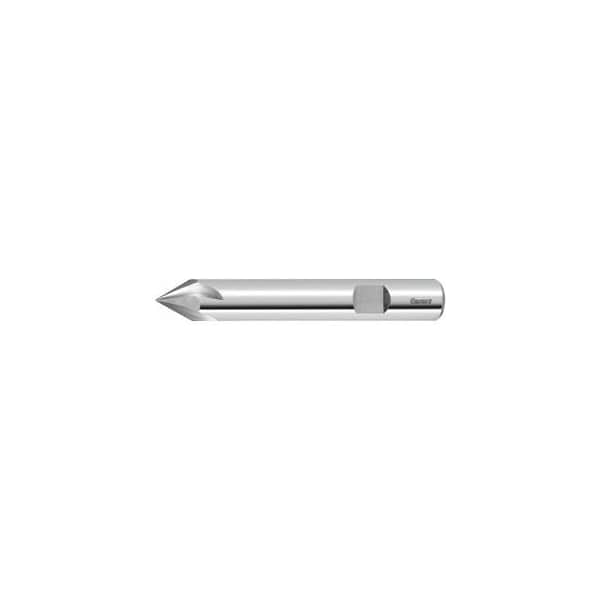

Solid Carbide Deburring Mill, 60 Deg, Uncoated, 6 mm
Mfr # 208140 6
Zoro # G514423477
product price:
$
39.15
/ea
Key Features
Type
N
Material
Carbide
Dia. (In.)
0.2362
Shank Diameter
6 mm
Overall Length
57 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 208140 6
- Zoro #
- G514423477
- UPC #
- -
- Country of Origin
- Germany
- Type
- N
- Material
- Carbide
- Tip Angle
- 60 deg
- Finish
- Uncoated
- End Mill Style
- Drill Point
- Shank Tolerance
- h6
- Chamfer Mill
- 30 Degrees
- Coolant Through
- no
- Color Ring
- without
- Feed Fz in Steel < 900 N/mm2
- 0.03 mm
- Corner Chamfer Angle
- 60 Degrees
- Type of Product
- Deburrers
- Direction of infeed
- horizontal and oblique
- Correction Factor Fz
- 1.25
- Shank
- DIN 6535 HB to h6
- Flutes
- 4
- Feed Fz in Steel < 900 N/mm2
- 0.03 mm
Description
Tolerance: Dimension S = ±0.1 mm, point angle ±10 arc minutes. With special flute geometry for smooth cutting. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 4 Shank: DIN 6535 HB to h6 Chamfer mill: 30 degrees No. of teeth Z: 4 Dimension S: 5.9 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Feed fz in steel < 900 N/mm2: 0.03 mm
