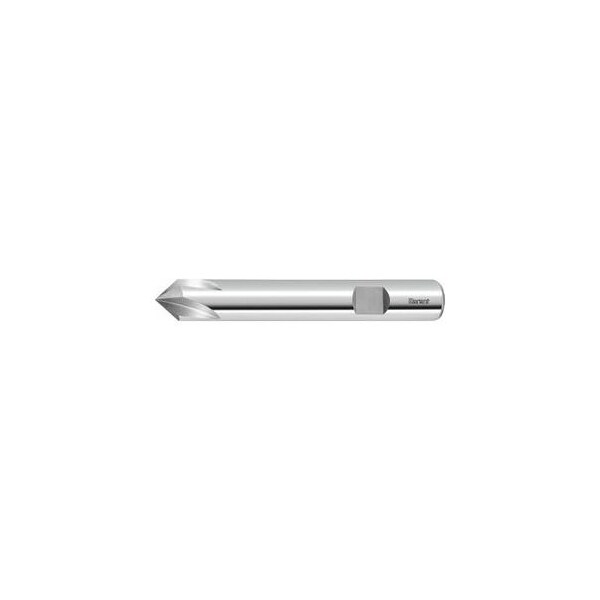

Solid Carbide Deburring Mill, 90 Deg, Uncoated, 8 mm
Mfr # 208110 8
Zoro # G214423593
product price: $42.55
/eaKey Features
Tolerance Nominal Diameter
h6
Shank
DIN 6535 HB to h6
Maximum Cutting Depth Ap Max When Side Milling
5.6 mm
Correction Factor Fz
1.25
Direction of infeed
horizontal and oblique
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
208110 8
Zoro #
G214423593
UPC #
-
Country of Origin
Germany
Dimensions
Tolerance Nominal Diameter
h6
Maximum Cutting Depth Ap Max When Side Milling
5.6 mm
Min. Cutting Depth
0.01 mm
Dimension S
5.6 mm
Shank Diameter
8 mm
Overall Length
63 mm
Dia. (In.)
8 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
5.6 mm
Description
Tolerance: Dimension S = ±0.1 mm, point angle ±10 arc minutes. With special flute geometry for smooth cutting. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 4 Shank: DIN 6535 HB to h6 Chamfer mill: 45 degrees No. of teeth Z: 4 Dimension S: 5.6 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm Feed fz in steel < 900 N/mm2: 0.04 mm
