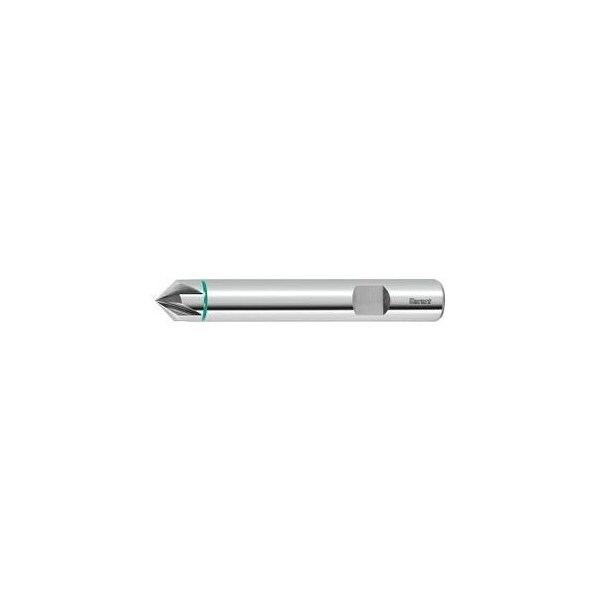

Solid Carbide Deburring Mill, 90 Deg, Uncoated, 8 mm
Mfr # 208162 8
Zoro # G814423634
product price: $41.79
/eaKey Features
Type
N
Material
Carbide
Dia. (In.)
0.315
Shank Diameter
8 mm
Overall Length
63 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 208162 8
- Zoro #
- G814423634
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Dia. (In.)
- 0.315
- Shank Diameter
- 8 mm
- Overall Length
- 63 mm
- Dimension S
- 5.6 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 5.6 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 5.6 mm
- Min. Cutting Depth
- 0.01 mm
- Tolerance Nominal Diameter
- h6
Description
With special flute geometry, smooth cutting. Tolerance: Dimension S = ± 0.2 mm. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 6 Shank: DIN 6535 HB to h6 Chamfer mill: 45 degrees No. of teeth Z: 6 Dimension S: 5.6 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm Feed fz in steel < 900 N/mm2: 0.04 mm
