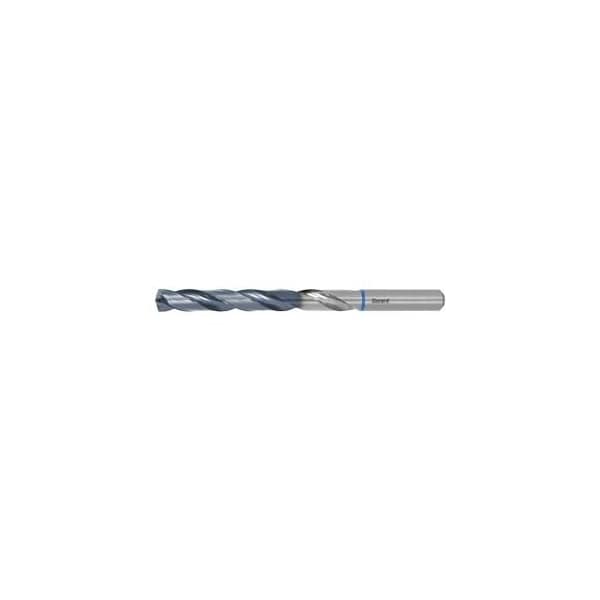

Solid Carbide Drill, 15.6 mm Dia, 140 Deg Point Angle, TiAlN Coated, Through-Coolant
Mfr # 123008 15,6
Zoro # G514376513
product price:Â $829.99
/ea
Free Shipping & Returns
Key Features
Overall Length
203 mm
Shank Dia.
16 mm
Shank Type
DIN 6535 HA to h6
Number of Flutes
2
Drill Bit Material
Solid Carbide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 123008 15,6
- Zoro #
- G514376513
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 203 mm
- Shank Dia.
- 16 mm
Details
- Item
- Jobber drill
- Shank Type
- DIN 6535 HA to h6
- Number of Flutes
- 2
- Drill Bit Material
- Solid Carbide
- Finish
- TiAlN
- Drill Bit Point Angle
- 140 Degrees
- Standards
- Works standard
Description
Cutting chisel edge with high centering accuracy due to strong core and special point geometry. High roundness and alignment accuracy of the deep hole, thanks to 4 guide chamfers. Outstanding chip evacuation due to 4 internal cooling channels from Dia. 3.8 mm. Up to 3.7 mm Dia. with 2 internal cooling channels. Straight major cutting edges with honed edges and special flute profile for short chips, even on long chipping materials. Note: Flute length LC = L2 + 1.5 x DC.
