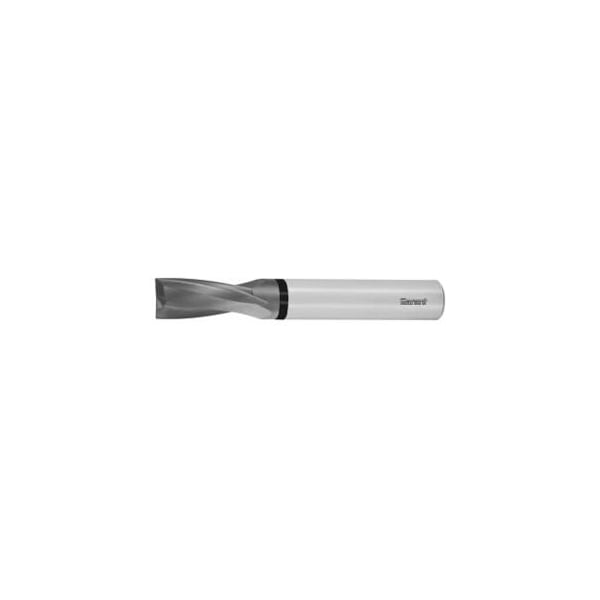

Solid Carbide End Mill, Diamond Coated, 10 mm
Mfr # 209711 10
Zoro # G514383139
product price: $171.99
/ea
Free Shipping & Returns
Key Features
Corner Chamfer Angle
45 Degrees
Cutting Width Ae for Milling Operation
Full slot cutting depth 1×D
Feed Fz For Slot Milling in Graphite
0.06 mm
Correction Factor Fz
1.25
Type of Product
End Mill
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
209711 10
Zoro #
G514383139
UPC #
-
Country of Origin
Germany
Dimensions
Cutting Width Ae for Milling Operation
Full slot cutting depth 1×D
Corner Chamfer Width at 45°
0.2 mm
Min. Cutting Depth
0.2 mm
Maximum Cutting Depth Ap Max When Side Milling
22 mm
Tolerance Nominal Diameter
h10
Maximum Cutting Depth Ap Max When Slot Milling From Solid
10 mm
Milling Diameter
10 mm
Length of Cut
22 mm
Overall Length
72 mm
Shank Dia.
10 mm
Description
With the latest generation of crystalline diamond coating sp3, for process reliability in machining Fiber-reinforced composites, CRP, GRP, and graphite. Dynamic cutter geometry. Relief ground with 2 hollow-ground chamfers. High-precision and stable version due to the 15 Deg helix angle. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 2 Helix angle: 15 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA with h6 No. of teeth Z: 2 Flute length Lc: 22 mm Overall length L: 72 mm Shank Dia. Ds: 10 mm Corner chamfer width at 45 Deg: 0.2 mm Feed fz for slot milling in GRP CRP: 0.06 mm
