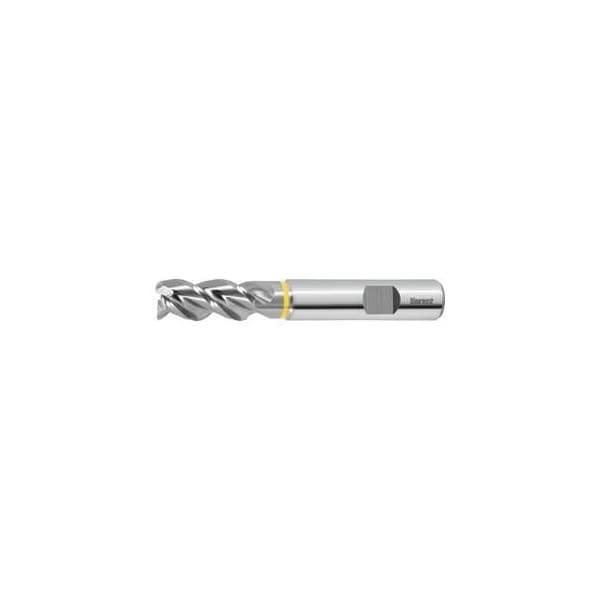

Solid Carbide End Mill for Aluminum, Coolant Through, Uncoated, 16 mm
Mfr # 202249 16
Zoro # G714383359
product price: $210.99
/ea
Free Shipping & Returns
Key Features
Corner Chamfer Angle
45 Degrees
Tolerance Nominal Diameter
h6
Maximum Cutting Depth Ap Max When Side Milling
36 mm
Corner Chamfer Width at 45°
0.2 mm
Min. Cutting Depth
0.2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202249 16
Zoro #
G714383359
UPC #
-
Country of Origin
Germany
Dimensions
Tolerance Nominal Diameter
h6
Maximum Cutting Depth Ap Max When Side Milling
36 mm
Corner Chamfer Width at 45°
0.2 mm
Min. Cutting Depth
0.2 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
16 mm
Overall Length
92 mm
Neck Dia.
15 mm
Milling Diameter
16 mm
Shank Dia.
16 mm
Length of Cut
36 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Lengths similar to DIN 6527 long. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. h6 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 3 Flute length Lc: 36 mm Overhang length L1 incl. recess: 42 mm Recess Dia. D1: 15 mm Overall length L: 92 mm Shank Dia. Ds: 16 mm
