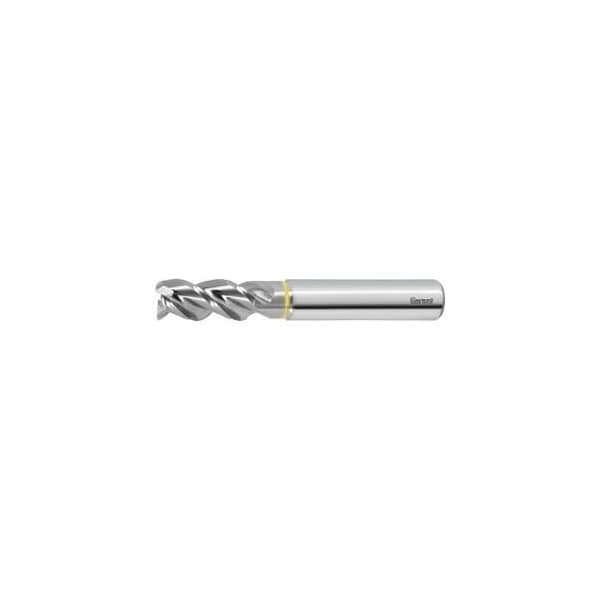

Solid Carbide End Mill for Aluminum, Coolant Through, Uncoated, 8 mm
Mfr # 202249 8
Zoro # G014383424
product price: $51.55
/eaKey Features
End Mill Style
Chamfer
Type
W
Overall Length
63 mm
Shank Type
DIN 6535 HA to h6
Number of Flutes
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202249 8
Zoro #
G014383424
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
63 mm
Shank Dia.
8 mm
Length of Cut
21 mm
Neck Dia.
7.4 mm
Milling Diameter
8 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
8 mm
Maximum Cutting Depth Ap Max When Side Milling
21 mm
Min. Cutting Depth
0.2 mm
Tolerance Nominal Diameter
h6
Corner Chamfer Width at 45°
0.2 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Lengths similar to DIN 6527 long. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. h6 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 3 Flute length Lc: 21 mm Overhang length L1 incl. recess: 25 mm Recess Dia. D1: 7.4 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm
