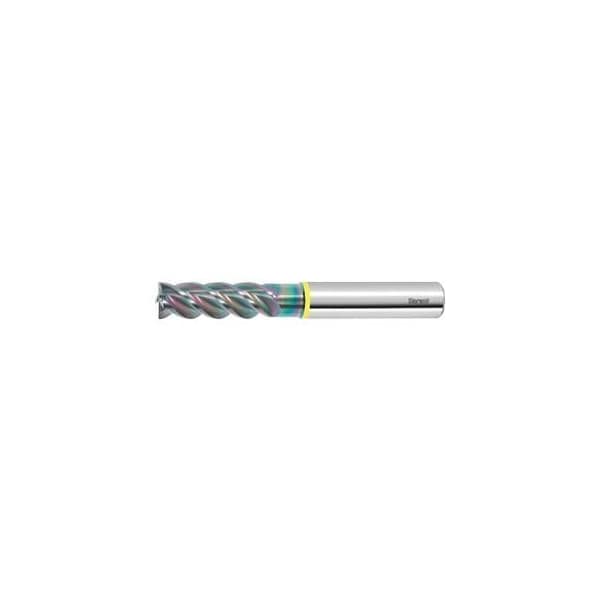

Solid Carbide End Mill for Aluminum, DLC Coated, 8 mm
Mfr # 202552 8
Zoro # G214384252
product price: $105.99
/ea
Free Shipping & Returns
Key Features
Maximum Cutting Depth Ap Max When Side Milling
24 mm
Correction Factor Fz
3
Color Ring
yellow
Corner Chamfer Angle
45 Degrees
Corner Chamfer Width at 45°
0.2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202552 8
Zoro #
G214384252
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Side Milling
24 mm
Corner Chamfer Width at 45°
0.2 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
4 mm
Cutting Width Ae for Milling Operation
0.3×D for side milling
Min. Cutting Depth
0.1 mm
Tolerance Nominal Diameter
f8
Milling Diameter
8 mm
Length of Cut
24 mm
Overall Length
68 mm
Shank Dia.
8 mm
Neck Dia.
7.4 mm
Description
Sturdy roughing end mill without knuckle profile. With strong core, special chip breaker recesses and large polished flutes. Application: For roughing milling with high demands on the component surface. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 24 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 7.4 mm Overall length L: 68 mm Shank Dia. Ds: 8 mm
