Shop GARANT

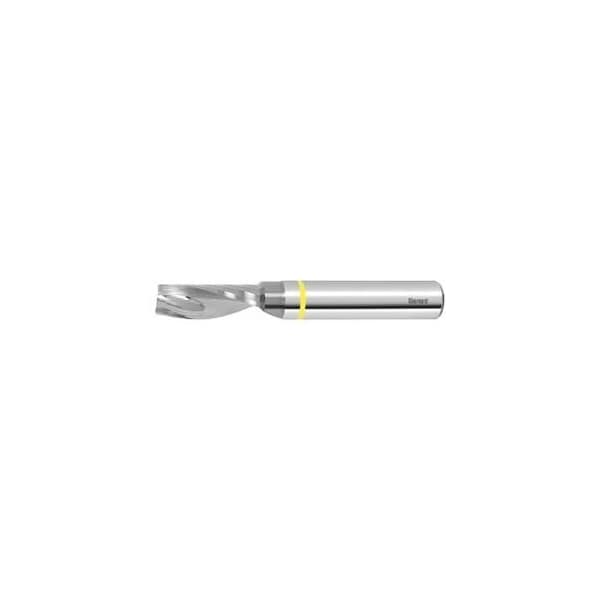

Solid Carbide End Mill, For Aluminum, Uncoated, 3 mm

  • Mfr # 209300 3

  • Zoro # G314381243

product price:
$
41.65
/ea

Key Features

Overall Length
50 mm
Milling Diameter
3 mm
Number of Flutes
1
End Mill Style
Square
Finish
uncoated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
209300 3
Zoro #
G314381243
UPC #
-
Country of Origin
Germany
Number of Flutes
1
End Mill Style
Square
Finish
uncoated
Color Ring
yellow
Feed Fz For Slot Milling in PMMA
0.008 mm
Corner Chamfer Angle
90 Degrees
Correction Factor Fz
1.25
Shank Tolerance
h6
Type of Product
End Mill
Coolant Through
No
End Mill Material
Carbide
Helix Angle
23 Degrees
Overall Reach
17 mm
Cutting Direction
horizontal, oblique and vertical
Type
W
Shank Type
DIN 6535 HA to h5

Description

Special geometry for machining plastic. Large flutes for unobstructed swarf evacuation. Application: Especially for milling plastics, plunging and contour milling. Note: Successor product to No. 209310. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 1 Helix angle: 23 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h5 No. of teeth Z: 1 Flute length Lc: 12 mm Overhang length L1 incl. recess: 17 mm Recess Dia. D1: 2.8 mm Overall length L: 50 mm Shank Dia. Ds: 3 mm
