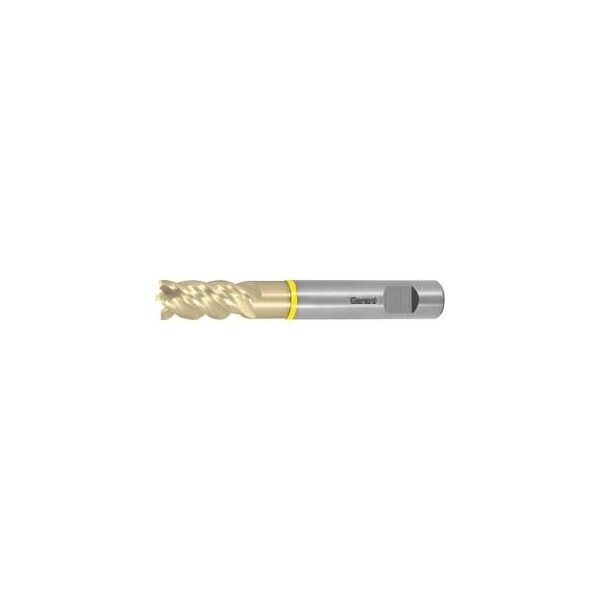

Solid Carbide End Mill for Aluminum, ZOX Coated, 16 mm
Mfr # 202548 16
Zoro # G614383657
product price:Â
$
468.99
/ea
Free Shipping & Returns
Key Features
Overall Length
92 mm
Milling Diameter
16 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
ZOX
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202548 16
- Zoro #
- G614383657
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- ZOX
- Coolant Through
- No
- Overall Reach
- 42 mm
- Helix Angle
- 45 Degrees
- Shank Type
- DIN 6535 HB to h6
- Shank Form
- HB
- End Mill Material
- Carbide
- Correction Factor Fz
- 3
- Type
- W
- Cutting Direction
- horizontal, oblique and vertical
- Feed Fz For Slot Milling in Short-Chipping Aluminium
- 0.09 mm
- Corner Chamfer Angle
- 45 Degrees
- Color Ring
- yellow
- Maximum Cut Arc Angle
- 60 Degrees
- Type of Product
- End Mill
- Shank Tolerance
- h6
Description
Sturdy roughing end mills without knuckle profile. With strong core, special chip breaker recesses and large polished flutes. Application: For roughing milling with high demands on the component surface. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 4 Flute length Lc: 32 mm Overhang length L1 incl. recess: 42 mm Recess Dia. D1: 15 mm Overall length L: 92 mm Shank Dia. Ds: 16 mm
