Shop GARANT

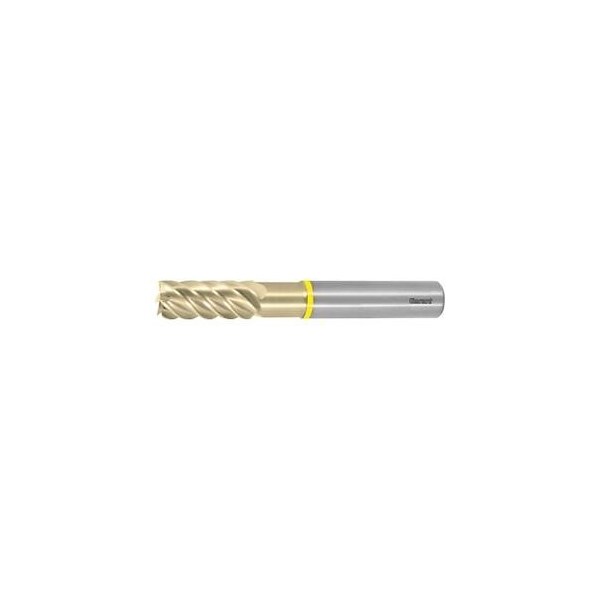

Solid Carbide End Mill, for Aluminum, ZOX Coated, 16 mm

  • Mfr # 203170 16
  • Zoro # G014381420
product price:
$
490.99
/ea
Free Shipping & Returns

Key Features

Overall Length
93 mm
Milling Diameter
16 mm
Number of Flutes
6
End Mill Style
Square
Finish
ZOX
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
203170 16
Zoro #
G014381420
UPC #
-
Country of Origin
Germany
Number of Flutes
6
End Mill Style
Square
Finish
ZOX
End Mill Cutting Type
HPC
Helix Angle
48 Degrees
End Mill Material
Carbide
Type
W
Cutting Direction
horizontal and oblique
Shank Type
DIN 6535 HA to h6
Overall Reach
44 mm
Coolant Through
No
Type of Product
End Mill
Correction Factor Fz
1.25
Corner Chamfer Angle
90 Degrees
Shank Tolerance
h6
Color Ring
yellow

Description

With strong core, special chip-breaker recesses and large polished flutes. Application: For milling on the most demanding component surfaces. Suitable exclusively for profile milling. Tolerance nominal Dia. f8 No. of teeth Z: 6 Helix angle: 48 degrees Direction of infeed: horizontal and oblique Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 6 Flute length Lc: 40 mm Overhang length L1 incl. recess: 44 mm Recess Dia. D1: 15 mm Overall length L: 93 mm Shank Dia. Ds: 16 mm
