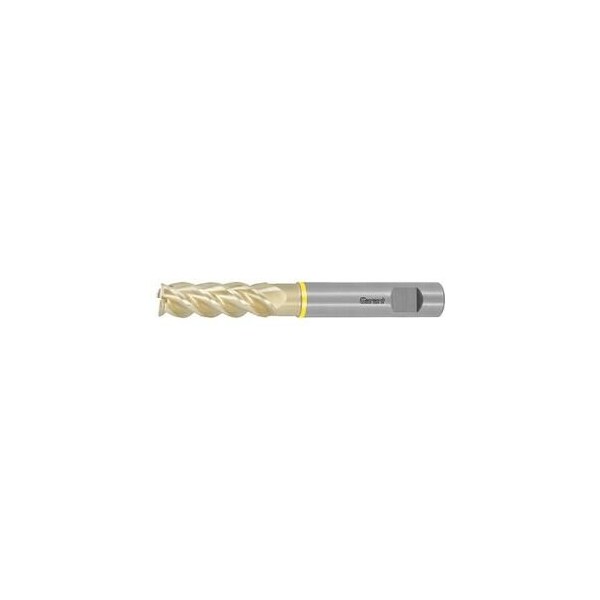

Solid Carbide End Mill for Aluminum, ZOX Coated, 20 mm

  • Mfr # 202549 20

  • Zoro # G214383545

product price:
$
984.99
/ea
Free Shipping & Returns

Key Features

Overall Length
126 mm
Milling Diameter
20 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
ZOX
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
202549 20
Zoro #
G214383545
UPC #
-
Country of Origin
Germany
Number of Flutes
4
End Mill Style
Chamfer
Finish
ZOX
Maximum Cut Arc Angle
60 Degrees
Type of Product
End Mill
Shank Tolerance
h6
Correction Factor Fz
3
Corner Chamfer Angle
45 Degrees
Shank Form
HB
Color Ring
yellow
Feed Fz For Slot Milling in Short-Chipping Aluminium
0.16 mm
Shank Type
DIN 6535 HB to h6
Overall Reach
74 mm
Helix Angle
45 Degrees
Type
W
Coolant Through
No
End Mill Material
Carbide
Cutting Direction
horizontal, oblique and vertical

Description

Sturdy roughing slot drills without knuckle profile. With strong core, special chip breaker recesses and large polished flutes. Application: For roughing milling with high demands on the component surface. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 4 Flute length Lc: 60 mm Overhang length L1 incl. recess: 74 mm Recess Dia. D1: 19 mm Overall length L: 126 mm Shank Dia. Ds: 20 mm
