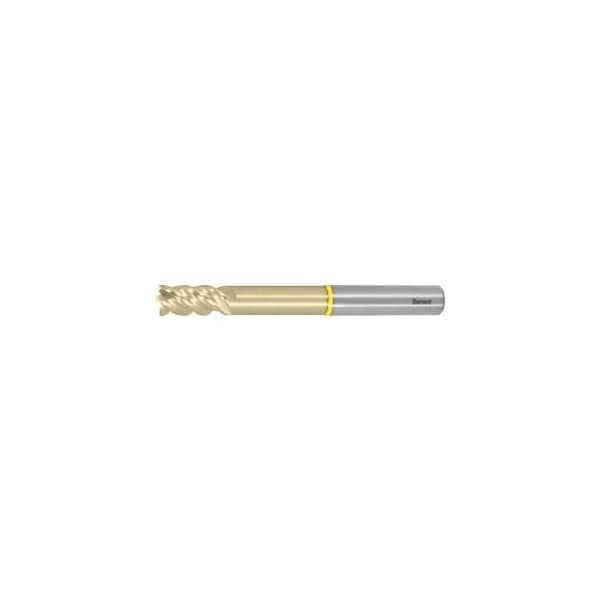

Solid Carbide End Mill for Aluminum, ZOX Coated, 6 mm
Mfr # 202551 6
Zoro # G314383490
product price:Â $88.15
/ea
Free Shipping & Returns
Key Features
Overall Length
80 mm
Milling Diameter
6 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
ZOX
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
202551 6
Zoro #
G314383490
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
80 mm
Milling Diameter
6 mm
Length of Cut
12 mm
Neck Dia.
5.5 mm
Corner Chamfer Width at 45°
0.2 mm
Maximum Cutting Depth Ap Max When Side Milling
12 mm
Min. Cutting Depth
0.2 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
3 mm
Tolerance Nominal Diameter
f8
Shank Dia.
6 mm
Description
Sturdy roughing end mills without knuckle profile. With strong core, special chip breaker recesses and large polished flutes. Application: For roughing milling with high demands on the component surface. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 4 Flute length Lc: 12 mm Overhang length L1 incl. recess: 42 mm Recess Dia. D1: 5.5 mm Overall length L: 80 mm Shank Dia. Ds: 6 mm
