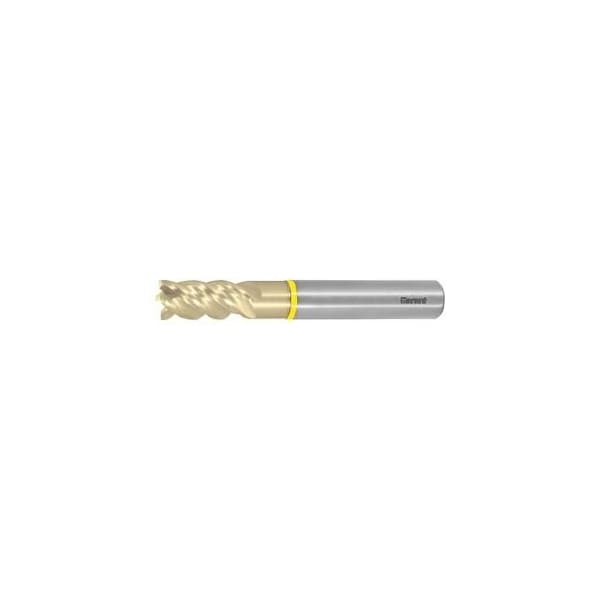

Solid Carbide End Mill for Aluminum, ZOX Coated, 8 mm
Mfr # 202548 8
Zoro # G814383655
product price: $78.15
/ea
Free Shipping & Returns
Key Features
Feed Fz For Slot Milling in Short-Chipping Aluminium
0.06 mm
Maximum Cutting Depth Ap Max When Side Milling
16 mm
Corner Chamfer Width at 45°
0.2 mm
Shank Tolerance
h6
Color Ring
yellow
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202548 8
Zoro #
G814383655
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Side Milling
16 mm
Corner Chamfer Width at 45°
0.2 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
4 mm
Min. Cutting Depth
0.2 mm
Length of Cut
16 mm
Neck Dia.
7.4 mm
Shank Dia.
8 mm
Overall Length
63 mm
Milling Diameter
8 mm
Description
Sturdy roughing end mills without knuckle profile. With strong core, special chip breaker recesses and large polished flutes. Application: For roughing milling with high demands on the component surface. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 4 Flute length Lc: 16 mm Overhang length L1 incl. recess: 25 mm Recess Dia. D1: 7.4 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm
