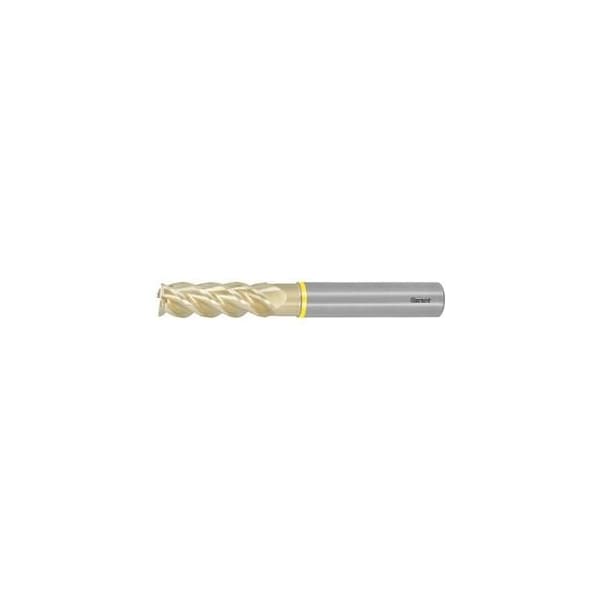

Solid Carbide End Mill for Aluminum, ZOX Coated, 8 mm
- Mfr # 202549 8
- Zoro # G714383502
product price:Â
$
116.99
/ea
Free Shipping & Returns
Key Features
Overall Length
68 mm
Milling Diameter
8 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
ZOX
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202549 8
- Zoro #
- G714383502
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- ZOX
- Cutting Direction
- horizontal, oblique and vertical
- Coolant Through
- No
- End Mill Material
- Carbide
- Type
- W
- Helix Angle
- 45 Degrees
- Shank Type
- DIN 6535 HA to h6
- Overall Reach
- 30 mm
- Shank Form
- HA
- Shank Tolerance
- h6
- Type of Product
- End Mill
- Feed Fz For Slot Milling in Short-Chipping Aluminium
- 0.08 mm
- Correction Factor Fz
- 3
- Color Ring
- yellow
- Maximum Cut Arc Angle
- 60 Degrees
- Corner Chamfer Angle
- 45 Degrees
Description
Sturdy roughing slot drills without knuckle profile. With strong core, special chip breaker recesses and large polished flutes. Application: For roughing milling with high demands on the component surface. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 4 Flute length Lc: 24 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 7.4 mm Overall length L: 68 mm Shank Dia. Ds: 8 mm
