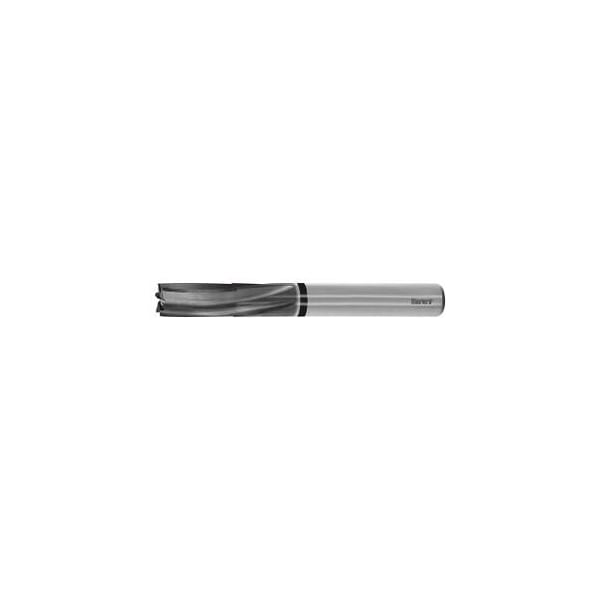

Solid Carbide End Mill, for Composites, Diamond Coated, 8 mm
Mfr # 209515 8
Zoro # G514381562
product price:Â $169.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
8 mm
Overall Length
70 mm
Number of Flutes
6
End Mill Style
Square
Finish
Diamond
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 209515 8
- Zoro #
- G514381562
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 8 mm
- Overall Length
- 70 mm
- Length of Cut
- 22 mm
- Cutting Width Ae for Milling Operation
- 0.5×D for side milling
- Maximum Cutting Depth Ap Max When Side Milling
- 22 mm
- Tolerance Nominal Diameter
- h10
- Min. Cutting Depth
- 0.01 mm
- Shank Dia.
- 8 mm
Details
- Number of Flutes
- 6
- End Mill Style
- Square
- Finish
- Diamond
- Color Ring
- black
- Corner Chamfer Angle
- 90 Degrees
- Cutting Section Dragging La
- 11 mm
- Shank Tolerance
- h6
- Correction Factor Fz
- 1.25
- Type of Product
- End Mill
- Feed Fz For Side Milling in GRP CRP
- 0.07 mm
- End Mill Material
- Carbide
- Shank Type
- DIN 6535 HA with h6
- Cutting Direction
- horizontal and oblique
- Coolant Through
- No
Description
Twisted and curved cutting edges, which enable burr-free milling of both the upper and lower edges of Fiber-reinforced composites. Delamination is prevented because the cutter performs a cut which is simultaneously dragging and compacting. The cutter must be positioned centrally to the cross section of the material. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 6 Direction of infeed: horizontal and oblique Shank: DIN 6535 HA with h6 No. of teeth Z: 6 Flute length Lc: 22 mm Cutting section dragging LA: 11 mm Overall length L: 70 mm Shank Dia. Ds: 8 mm Feed fz for side milling in GRP CRP: 0.07 mm
