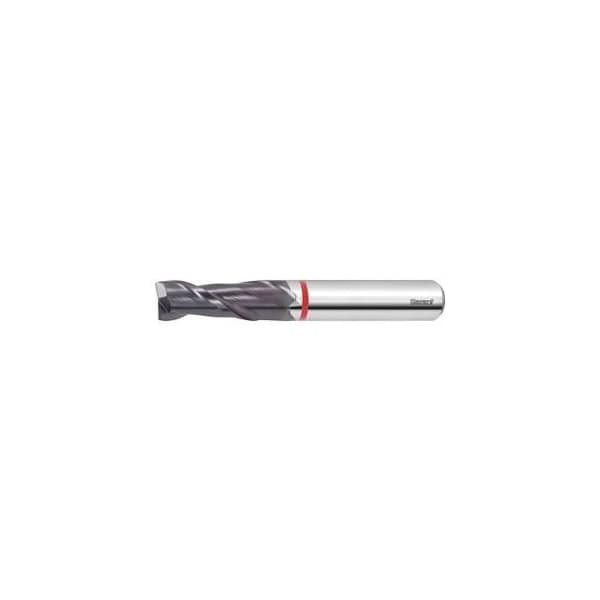

Solid Carbide End Mill for Hard Steels, TiAlN Coated, 3 mm
Mfr # 201648 3
Zoro # G814380715
product price: $89.85
/ea
Free Shipping & Returns
Key Features
Corner Chamfer Angle
90 Degrees
Color Ring
red
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1.5 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
7.5 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
201648 3
Zoro #
G814380715
UPC #
-
Country of Origin
Japan
Dimensions
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1.5 mm
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
7.5 mm
Tolerance Nominal Diameter
0 / -0.02
Length of Cut
7.5 mm
Shank Dia.
6 mm
Overall Length
50 mm
Milling Diameter
3 mm
Description
GARANT Diabolo 70: Special solid carbide substrate with extremely high tensile strength combined with outstanding wear resistance for optimum process reliability. Newly developed nano-crystalline high-tech coating for hard milling up to 70 HRC. Very suitable for continuous use in tool and mould making. Sizes 0.5 5: Recess angle a = 15 Deg. Application: Due to the special hard geometry ideal for use on hardened materials from 60 HRC to 70 HRC. Note: fz for ap = 0.05xD. Tolerance nominal Dia. 0 / -0.02 No. of teeth Z: 2 Helix angle: 35 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 2 Flute length Lc: 7.5 mm Overall length L: 50 mm Shank Dia. Ds: 6 mm Feed fz for slot milling in steel < 70 HRC: 0.006 mm Feed fz for side milling in steel < 70 HRC: 0.008 mm
