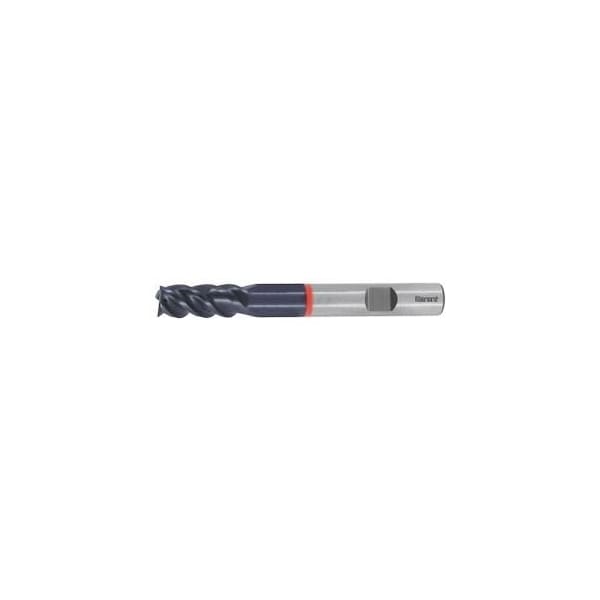

Solid Carbide End Mill, for Hard Steels, TiAlN Coated, 8 mm
- Mfr # 202982 8
- Zoro # G914384972
product price:Â
$
115.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
8 mm
Overall Length
100 mm
Length of Cut
16 mm
End Mill Cutting Type
MTC
Correction Factor Fz
1.25
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202982 8
- Zoro #
- G914384972
- UPC #
- -
- Country of Origin
- Germany
- End Mill Cutting Type
- MTC
- Correction Factor Fz
- 1.25
- Type of Product
- End Mill
- Color Ring
- red
- Feed Fz For Side Milling in Steel < 60 HRC
- 0.025 mm
- Shank Type
- DIN 6535 HB to h6
- Cutting Direction
- horizontal, oblique and vertical
- Type
- H
- Number of Flutes
- 4
- Finish
- TiAlN
- Helix Angle
- 45 Degrees
- End Mill Style
- Chamfer
- End Mill Material
- Carbide
- Coolant Through
- No
- Overall Reach
- 62 mm
- Feed Fz For Slot Milling in Steel < 60 HRC
- 0.02 mm
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 45 Degrees
Description
Significant cutting force reduction due to 45 Deg helix. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling centers. Note: For materials > 55 HRC we recommend reducing the depth of cut to ap=0.25xD...0.5xD. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 16 mm Overhang length L1 incl. recess: 62 mm Recess Dia. D1: 7.4 mm Overall length L: 100 mm Shank Dia. Ds: 8 mm
