Shop GARANT

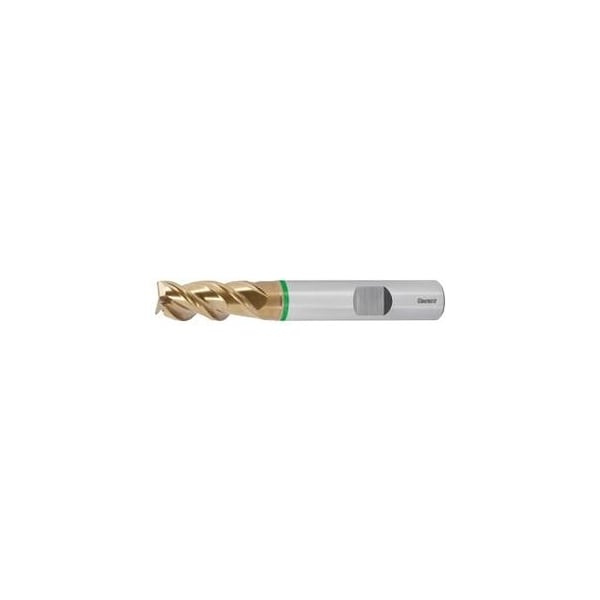

Solid Carbide End Mill, SiTiN, 10 mm

  • Mfr # 202392 10
  • Zoro # G714381607
product price:
$
141.99
/ea
Free Shipping & Returns

Key Features

Overall Length
72 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
SiTiN
Length of Cut
22 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
202392 10
Zoro #
G714381607
UPC #
-
Country of Origin
Germany
Number of Flutes
3
End Mill Style
Chamfer
Finish
SiTiN
End Mill Cutting Type
MTC
Type
N
Coolant Through
No
Shank Type
DIN 6535 HB to h6
Helix Angle
45 Degrees
Overall Reach
30 mm
End Mill Material
Carbide
Cutting Direction
horizontal, oblique and vertical
Feed Fz For Slot Milling in Steel < 900 N/mm2
0.06 mm
Correction Factor Fz
2
Feed Fz For Side Milling in Steel < 900 N/mm2
0.072 mm
Shank Tolerance
h6
Color Ring
green
Corner Chamfer Angle
45 Degrees
Standard
DIN 6527
Type of Product
End Mill
Feed Fz For Side Milling in Steel < 900 N/mm2
0.072 mm
Feed Fz For Slot Milling in Steel < 900 N/mm2
0.06 mm

Description

Special flute profile. Strengthened core. MTC rough milling up to 1.5xD in solid material. Eccentric relief ground. Lengths similar to DIN 6527 long. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. f8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 3 Flute length Lc: 22 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 9.7 mm Overall length L: 72 mm Shank Dia. Ds: 10 mm
