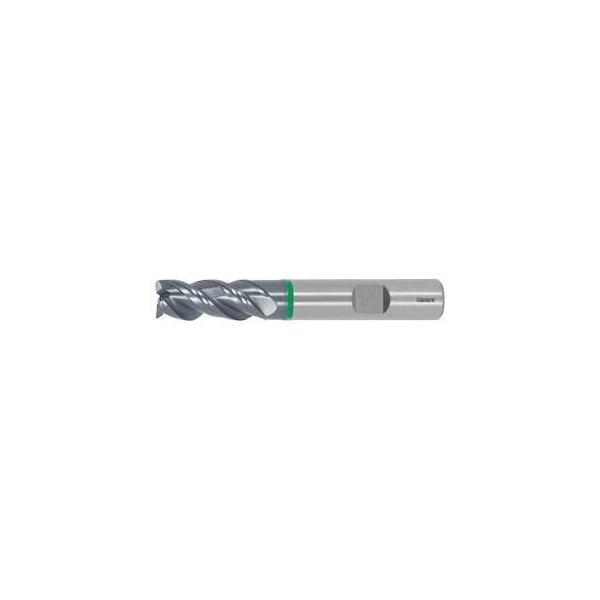

Solid Carbide End Mill, SiTiN, 16 mm
Mfr # 202396 16
Zoro # G814382214
product price:Â
$
394.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
16 mm
Overall Length
92 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
AlCrN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202396 16
- Zoro #
- G814382214
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 3
- End Mill Style
- Chamfer
- Finish
- AlCrN
- End Mill Cutting Type
- MTC
- Type of Product
- End Mill
- Shank Tolerance
- h6
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.096 mm
- Color Ring
- green
- Feed Fz For Slot Milling in Steel < 900Â N/mm2
- 0.08 mm
- Standard
- DIN 6527
- Corner Chamfer Angle
- 45 Degrees
- End Mill Material
- Carbide
- Type
- N
- Coolant Through
- No
- Overall Reach
- 42 mm
- Cutting Direction
- horizontal, oblique and vertical
- Helix Angle
- 45 Degrees
- Shank Type
- DIN 6535 HB to h6
- Correction Factor Fz
- 2
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.096 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.08 mm
Description
Special flute profile. Strengthened core. MTC rough milling up to 1.5xD in solid material. Eccentric relief ground. Lengths similar to DIN 6527 long. Improved coating for a further reduction in cutting force combined with increased tool life. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. f8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 3 Flute length Lc: 32 mm Overhang length L1 incl. recess: 42 mm Recess Dia. D1: 15.5 mm Overall length L: 92 mm Shank Dia. Ds: 16 mm
