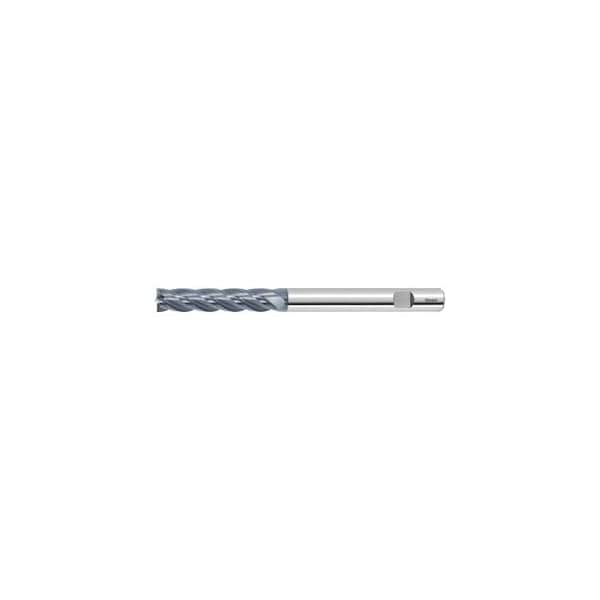

Solid Carbide End Mill, TiAlN Coated, 12 mm
Mfr # 202825 12
Zoro # G114384499
product price: $203.99
/ea
Free Shipping & Returns
Key Features
Color Ring
without
Feed Fz For Side Milling in Steel < 900 N/mm2
0.08 mm
Min. Cutting Depth
0.13 mm
Maximum Cutting Depth Ap Max When Side Milling
60 mm
Tolerance Nominal Diameter
e8
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202825 12
Zoro #
G114384499
UPC #
-
Country of Origin
Austria
Dimensions
Min. Cutting Depth
0.13 mm
Maximum Cutting Depth Ap Max When Side Milling
60 mm
Tolerance Nominal Diameter
e8
Corner Chamfer Width at 45°
0.13 mm
Cutting Width Ae for Milling Operation
0.1×D for side milling
Maximum Cutting Depth Ap Max When Slot Milling From Solid
6 mm
Length of Cut
60 mm
Shank Dia.
12 mm
Milling Diameter
12 mm
Overall Length
150 mm
Description
Double relief ground side clearance angle. With high-performance coating for general-purpose use. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 35 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 60 mm Overall length L: 150 mm Shank Dia. Ds: 12 mm Shank form: HB Corner chamfer width at 45 Deg: 0.13 mm
