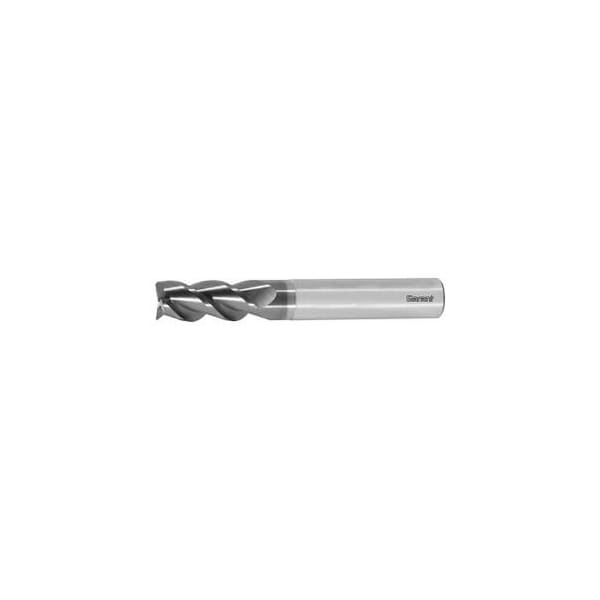

Solid Carbide End Mill, TiAlN Coated, 20 mm
Mfr # 202280 20
Zoro # G814384676
product price:Â
$
447.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
20 mm
Overall Length
104 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202280 20
- Zoro #
- G814384676
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 3
- End Mill Style
- Chamfer
- Finish
- TiAlN
- Cutting Direction
- horizontal, oblique and vertical
- Helix Angle
- 45 Degrees
- Coolant Through
- No
- Type of Product
- End Mill
- Standard
- DIN 6527
- Color Ring
- without
- Correction Factor for Vc
- 1.5
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 45 Degrees
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.12 mm
- Overall Reach
- 54 mm
- Type
- N
- Shank Type
- DIN 6535 HA to h6
- End Mill Material
- Carbide
- Correction Factor Fz
- 1.5
- Feed Fz For Slot Milling in Steel < 900Â N/mm2
- 0.1 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.1 mm
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.12 mm
Description
Eccentric relief ground. Dimensions similar to DIN 6527 long series. Tolerance: Size nominal Dia. DC = e8. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 3 Flute length Lc: 38 mm Overhang length L1 incl. recess: 54 mm Recess Dia. D1: 19.7 mm Overall length L: 104 mm Shank Dia. Ds: 20 mm
