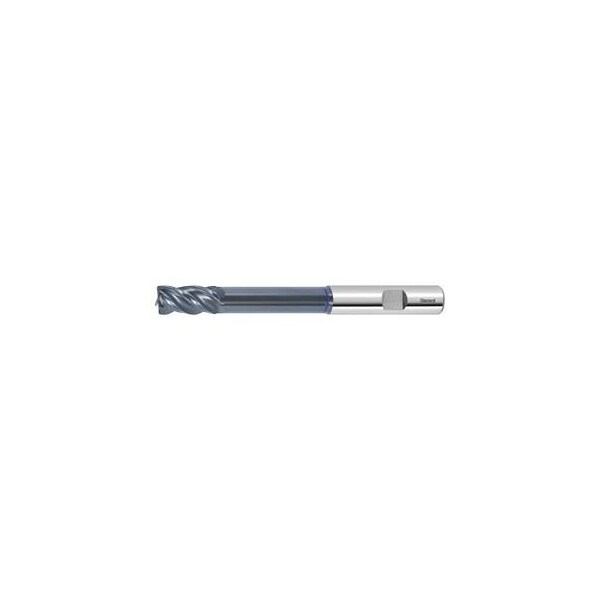

Solid Carbide End Mill, TiAlN Coated, 20 mm
Mfr # 203026 20
Zoro # G514382262
product price:Â $501.99
/ea
Free Shipping & Returns
Key Features
Overall Length
175 mm
Milling Diameter
20 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 203026 20
- Zoro #
- G514382262
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 175 mm
- Milling Diameter
- 20 mm
- Length of Cut
- 40 mm
- Corner Chamfer Width at 45°
- 0.5 mm
- Tolerance Nominal Diameter
- e8
- Min. Cutting Depth
- 0.3 mm
- Cutting Width Ae for Milling Operation
- 0.1×D for side milling
- Maximum Cutting Depth Ap Max When Side Milling
- 40 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 10 mm
- Neck Dia.
- 19 mm
- Shank Dia.
- 20 mm
Description
Note: Successor product to No. 203025. Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 40 mm Overhang length L1 incl. recess: 98 mm Recess Dia. D1: 19 mm Overall length L: 175 mm Shank Dia. Ds: 20 mm
