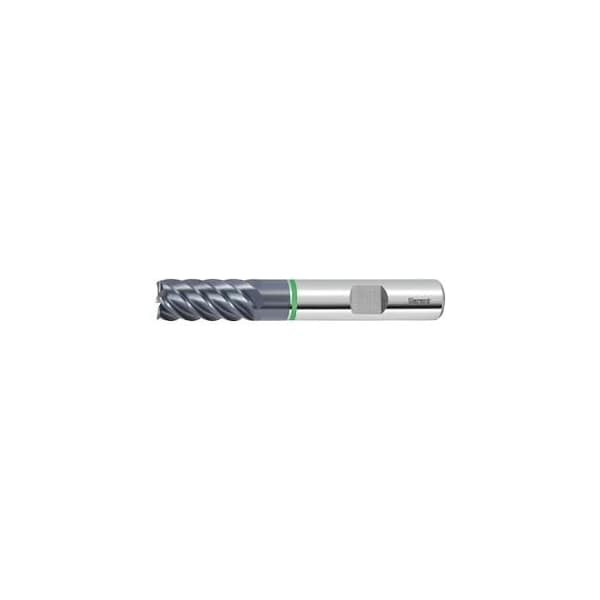

Solid Carbide End Mill, TiAlN Coated, 5 mm
- Mfr # 203480 5
- Zoro # G914382091
product price:Â
$
49.09
/ea
Key Features
Milling Diameter
5 mm
Overall Length
57 mm
Number of Flutes
6
Corner Chamfer Angle
45 Degrees
Feed Fz For Side Milling in Steel < 900Â N/mm2
0.032 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 203480 5
- Zoro #
- G914382091
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 6
- Corner Chamfer Angle
- 45 Degrees
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.032 mm
- End Mill Material
- Carbide
- Finish
- TiAlN
- Shank Type
- DIN 6535 HB to h6
- Coolant Through
- No
- Overall Reach
- 18 mm
- Helix Angle
- 45 Degrees
- Type
- N
- End Mill Style
- Chamfer
- Cutting Direction
- horizontal
- Shank Tolerance
- h6
- Correction Factor Fz
- 1.25
- Color Ring
- green
- Standard
- DIN 6527
- Type of Product
- End Mill
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.032 mm
Description
High stability and extremely smooth cutting action due to at least 6 teeth. Double relief ground clearance angle. Application: For peripheral milling as a finishing operation. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 6 Helix angle: 45 degrees Direction of infeed: horizontal Shank: DIN 6535 HB to h6 No. of teeth Z: 6 Flute length Lc: 13 mm Overhang length L1 incl. recess: 18 mm Recess Dia. D1: 4.8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
