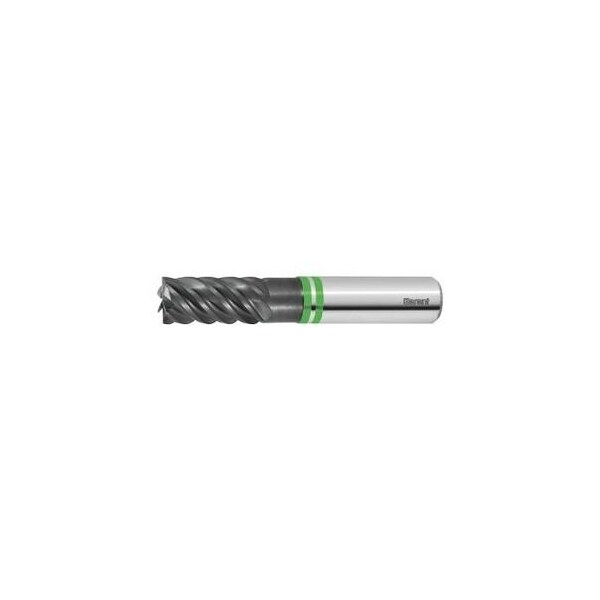

Solid Carbide End Mill, TiAlN Coated, 6 mm
- Mfr # 203530 6
- Zoro # G714382918
product price:Â
$
67.55
/ea
Key Features
Overall Length
57 mm
Milling Diameter
6 mm
Number of Flutes
6
End Mill Style
Square
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 203530 6
- Zoro #
- G714382918
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 57 mm
- Milling Diameter
- 6 mm
- Length of Cut
- 13 mm
- Neck Dia.
- 5.6 mm
- Shank Dia.
- 6 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 13 mm
- Tolerance Nominal Diameter
- f8
- Min. Cutting Depth
- 0.01 mm
- Cutting Width Ae for Milling Operation
- 0.05×D for side milling
Description
High stability and extremely smooth cutting action due to at least 6 teeth. Eccentric relief ground. Extremely high taper accuracy with tolerances in the um range, for precise 90 Deg angles and plane-parallel surfaces in profile milling. For the most demanding angular accuracy. Cutter corner chamfer undefined due to eccentric relief grinding. With maximum 0.008 mm tapering. Application: For peripheral milling as a finishing operation. Tolerance nominal Dia. f8 No. of teeth Z: 6 Helix angle: 45 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 6 Flute length Lc: 13 mm Overhang length L1 incl. recess: 19 mm Recess Dia. D1: 5.6 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
