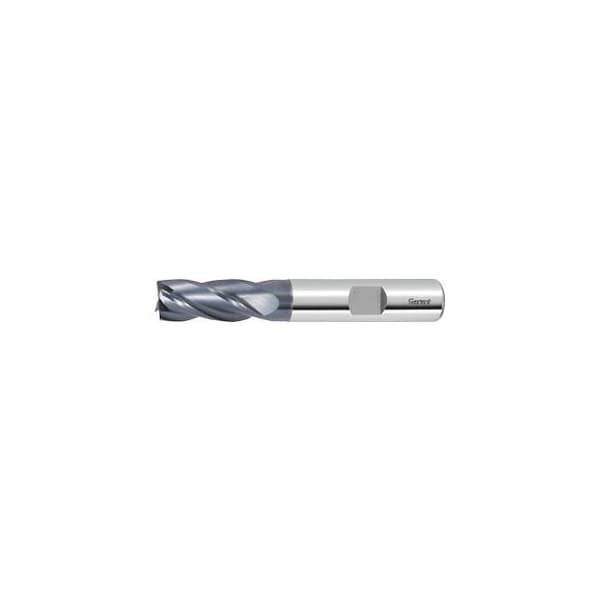

Solid Carbide End Mill, TiAlN Coated, 8 mm
Mfr # 202720 8
Zoro # G614384685
product price: $60.79
/eaKey Features
Coolant Through
No
Length of Cut
22 mm
Type
H
Milling Diameter
8 mm
Neck Dia.
7.8 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202720 8
Zoro #
G614384685
UPC #
-
Country of Origin
Germany
Dimensions
Length of Cut
22 mm
Milling Diameter
8 mm
Neck Dia.
7.8 mm
Shank Dia.
8 mm
Overall Length
70 mm
Maximum Cutting Depth Ap Max When Side Milling
22 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
4 mm
Corner Chamfer Width at 45°
0.08 mm
Min. Cutting Depth
0.08 mm
Tolerance Nominal Diameter
e8
Description
Double relief ground side clearance angle. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 22 mm Overhang length L1 incl. recess: 32 mm Recess Dia. D1: 7.8 mm Overall length L: 70 mm Shank Dia. Ds: 8 mm
