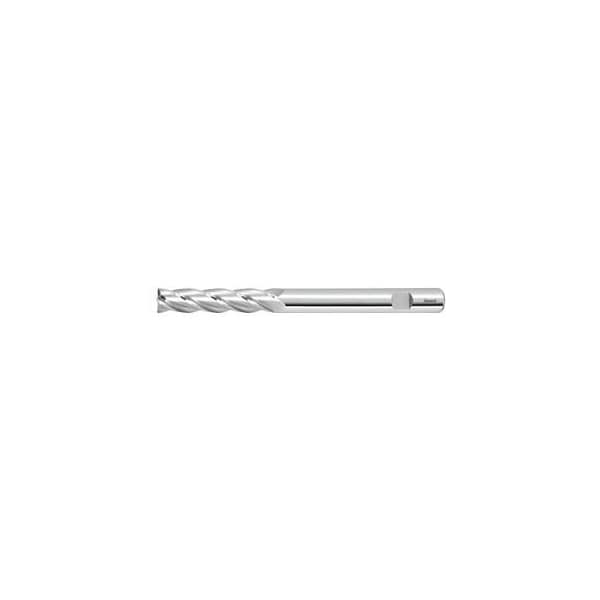

Solid Carbide End Mill, Uncoated, 12 mm
Mfr # 202820 12
Zoro # G114384680
product price:Â $162.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
12 mm
Overall Length
150 mm
Number of Flutes
4
End Mill Style
Chamfer
Length of Cut
60 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202820 12
- Zoro #
- G114384680
- UPC #
- -
- Country of Origin
- Austria
Dimensions
- Milling Diameter
- 12 mm
- Overall Length
- 150 mm
- Length of Cut
- 60 mm
- Shank Dia.
- 12 mm
- Corner Chamfer Width at 45°
- 0.13 mm
- Cutting Width Ae for Milling Operation
- 0.1×D for side milling
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 6 mm
- Min. Cutting Depth
- 0.13 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 60 mm
- Tolerance Nominal Diameter
- e8
Description
Double relief ground side clearance angle. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 35 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 60 mm Overall length L: 150 mm Shank Dia. Ds: 12 mm Shank form: HB Corner chamfer width at 45 Deg: 0.13 mm
