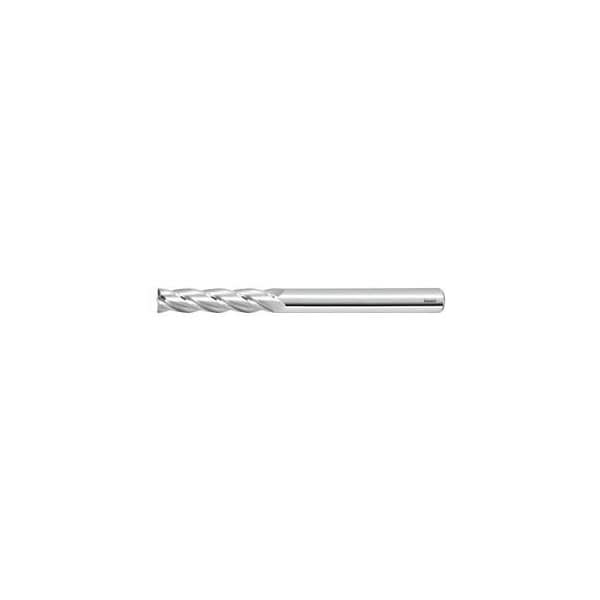

Solid Carbide End Mill, Uncoated, 3 mm
- Mfr # 202820 3
- Zoro # G514384525
product price:Â
$
40.25
/ea
Key Features
Overall Length
75 mm
Number of Flutes
4
End Mill Style
Chamfer
Length of Cut
16 mm
Feed Fz For Side Milling in Steel < 900Â N/mm2
0.011 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 202820 3
- Zoro #
- G514384525
- UPC #
- -
- Country of Origin
- Austria
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- uncoated
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.011 mm
- Correction Factor Fz
- 1.25
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 45 Degrees
- Color Ring
- without
- Feed Fz For Slot Milling in Steel < 900Â N/mm2
- 0.01 mm
- Shank Form
- HA
- Type of Product
- End Mill
- Helix Angle
- 35 Degrees
- Cutting Direction
- horizontal, oblique and vertical
- Coolant Through
- No
- Type
- N
- End Mill Material
- Carbide
- Shank Type
- DIN 6535 HA to h6
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.011 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.01 mm
Description
Double relief ground side clearance angle. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 35 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 16 mm Overall length L: 75 mm Shank Dia. Ds: 3 mm Shank form: HA Corner chamfer width at 45 Deg: 0.04 mm
