Shop GARANT

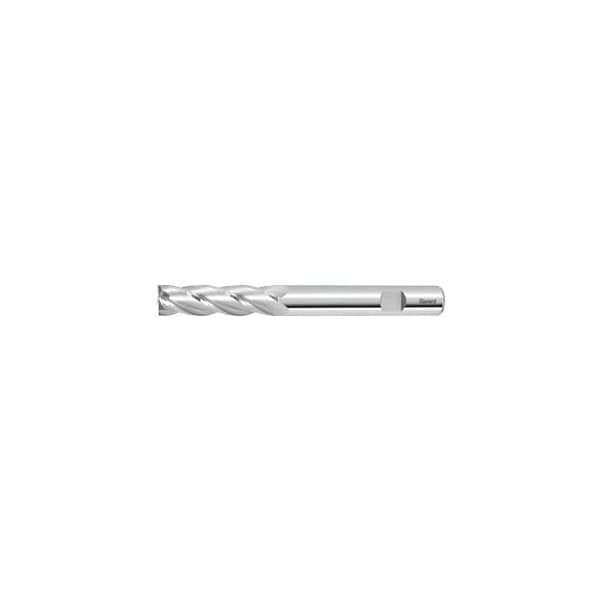

Solid Carbide End Mill, Uncoated, 5 mm

  • Mfr # 202810 5

  • Zoro # G514384792

product price:
$
54.29
/ea

Key Features

Overall Length
75 mm
Milling Diameter
5 mm
Number of Flutes
4
End Mill Style
Chamfer
Length of Cut
20 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
202810 5
Zoro #
G514384792
UPC #
-
Country of Origin
Austria
Number of Flutes
4
End Mill Style
Chamfer
Finish
uncoated
Shank Form
HA
Shank Tolerance
h6
Type of Product
End Mill
Color Ring
without
Feed Fz For Slot Milling in Steel < 900 N/mm2
0.02 mm
Corner Chamfer Angle
45 Degrees
Feed Fz For Side Milling in Steel < 900 N/mm2
0.023 mm
Correction Factor Fz
1.25
Cutting Direction
horizontal, oblique and vertical
End Mill Material
Carbide
Helix Angle
35 Degrees
Shank Type
DIN 6535 HA to h6
Type
N
Coolant Through
No
Feed Fz For Side Milling in Steel < 900 N/mm2
0.023 mm
Feed Fz For Slot Milling in Steel < 900 N/mm2
0.02 mm

Description

Double relief ground side clearance angle. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 35 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 20 mm Overall length L: 75 mm Shank Dia. Ds: 5 mm Shank form: HA Corner chamfer width at 45 Deg: 0.05 mm
