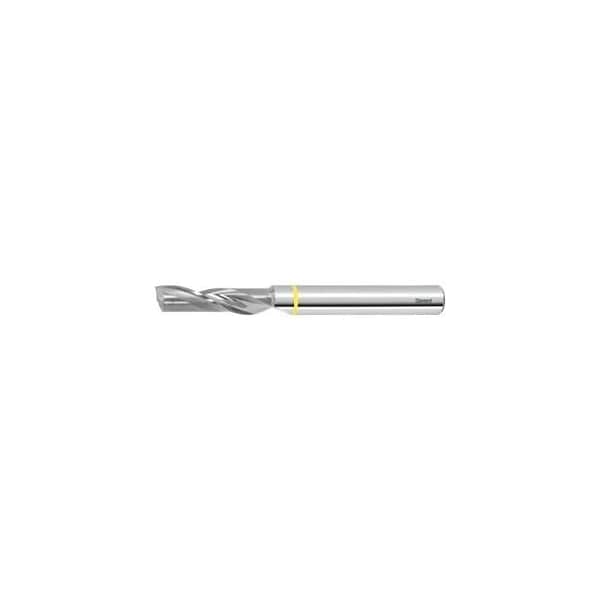

Solid Carbide End Mill, Uncoated, 8mm
- Mfr # 201043 8
- Zoro # G114371796
product price:Â
$
156.99
/ea
Free Shipping & Returns
Key Features
Number of Flutes
1
End Mill Style
Square
Length of Cut
35 mm
Helix Angle
26 Degrees
Coolant Through
No
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 201043 8
- Zoro #
- G114371796
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 8 mm
- Overall Length
- 100 mm
- Length of Cut
- 35 mm
- Shank Dia.
- 8 mm
- Tolerance Nominal Diameter
- h10
- Maximum Cutting Depth Ap Max When Side Milling
- 35 mm
- Cutting Width Ae for Milling Operation
- Full slot cutting depth 1×D
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 8 mm
Details
- Number of Flutes
- 1
- End Mill Style
- Square
- Finish
- uncoated
- Helix Angle
- 26 Degrees
- Coolant Through
- No
- Type
- W
- Cutting Direction
- horizontal, oblique and vertical
- End Mill Material
- solid carbide
- Shank Type
- DIN 6535 HA to h6
- Correction Factor Fz
- 1.25
- Corner Chamfer Angle
- 90 Degrees
- Type of Product
- End Mill
- Shank Tolerance
- h6
- Color Ring
- yellow
- Feed Fz For Slot Milling in Short-Chipping Aluminium
- 0.03 mm
Description
Large flutes for unobstructed swarf evacuation. Special geometry for machining aluminium. Application: Especially for milling aluminium, plunging and contour milling. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 1 Helix angle: 26 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 1 Flute length Lc: 35 mm Overall length L: 100 mm Shank Dia. Ds: 8 mm Feed fz for slot milling in short-chipping aluminium: 0.03 mm
