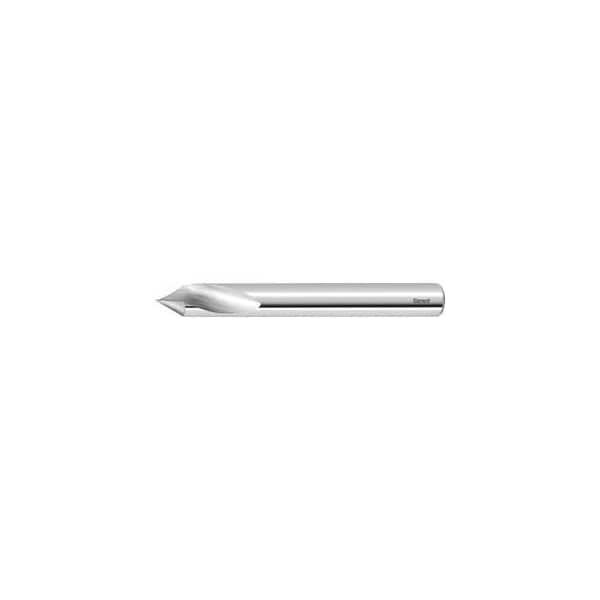

Solid Carbide Engraving Cutter, 60 Deg, Uncoated, 4 mm
Mfr # 208040 4
Zoro # G814391742
product price:Â
$
59.85
/ea
Key Features
Overall Length
50 mm
Shank Dia.
4 mm
Length of Cut
18 mm
Finish - Machining
uncoated
Material - Machining
Carbide
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 208040 4
- Zoro #
- G814391742
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 50 mm
- Shank Dia.
- 4 mm
- Length of Cut
- 18 mm
- Tolerance Nominal Diameter
- h6
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 18 mm
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 18 mm
- Cutter Dia.
- 4 mm
Details
- Finish - Machining
- uncoated
- Material - Machining
- Carbide
- Number of Flutes
- 1
- Feed Fz in Steel < 900Â N/mm2
- 0.02 mm
- Color Ring
- without
- Shank Tolerance
- h6
- Coolant Through
- no
- Type of Product
- Indexable end mill
- Corner Chamfer Angle
- 60 Degrees
- Correction Factor Fz
- 1.25
- Shank
- DIN 6535 HA to h6
- Type
- N
- Style
- Drill Point
- Tip Angle
- 60 Degrees
- Feed Fz in Steel < 900 N/mm2
- 0.02 mm
Description
Application: For engraving contours. Note: fz for ae = 1.0xD Through-coolant: no No. of teeth Z: 1 Shank: DIN 6535 HA to h6 No. of teeth Z: 1 Flute length Lc: 18 mm Overall length L: 50 mm Shank Dia. Ds: 4 mm Feed fz in steel < 900 N/mm2: 0.02 mm
