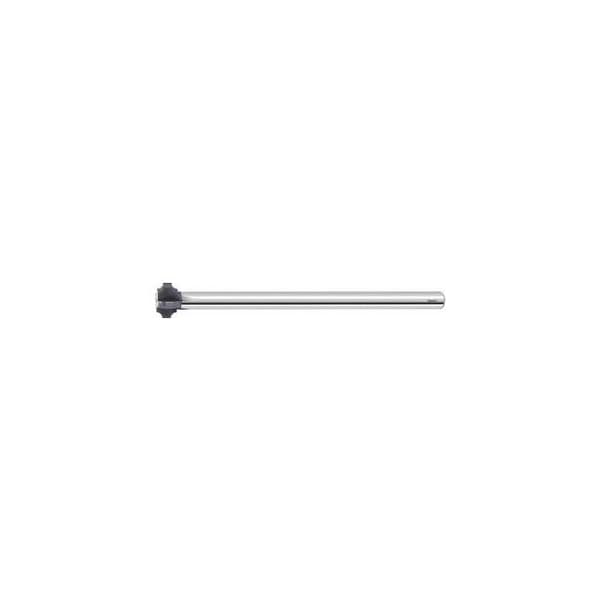

Solid Carbide Forward/Reverse Corner Rounding Cutter, TiAlN Coated, 0.3 mm
Mfr # 208170 0,3
Zoro # G514423583
product price: $214.99
/ea
Free Shipping & Returns
Key Features
Overall Length
100 mm
Milling Diameter
0.3 mm
Number of Flutes
4
End Mill Style
Corner Radius
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
208170 0,3
Zoro #
G514423583
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
100 mm
Milling Diameter
0.3 mm
Length of Cut
0.3 mm
Cutting Width Ae for Milling Operation
0.5×r for side milling
Large End Dia.
8 mm
Radius
0.3 mm
Point Dia.
7.4 mm
Shank Dia.
6 mm
Cutting Width
0.15 mm
Tolerance of Radius Contour
± 0.05
Min. Cutting Depth
0.01 mm
Radius Milling
backwards and forwards
Maximum Cutting Depth Ap Max When Side Milling
0.3 mm
Description
Extra long shank. Double ground head with quadrant profile. Tolerance: Size = Radius r ±0.05 mm. Application: For front and back deburring of edges with contours. No. of teeth Z: 4 Radius milling: backwards and forwards No. of teeth Z: 4 small Dia. D3: 7.4 mm large Dia. D2: 8 mm L2 +0.5: 2 mm Flute length Lc: 0.3 mm Overall length L: 100 mm
