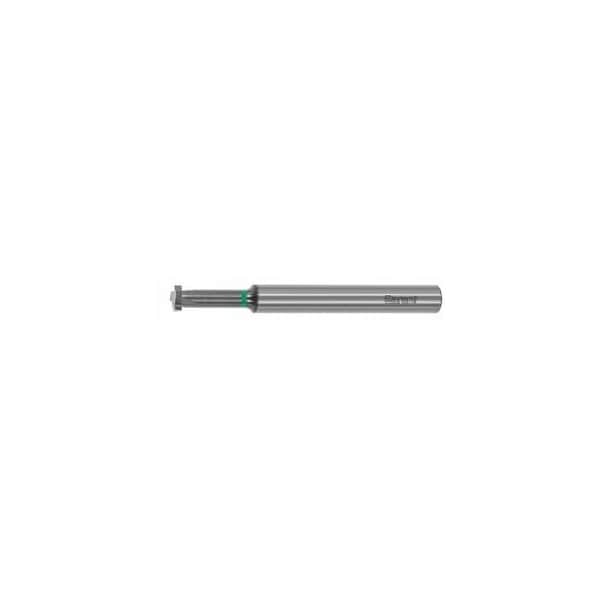

Solid Carbide Micro Woodruff Keyseating Cutter, AlTiN Coated, 5.8X0.9 mm
Mfr # 208033 5,8X0,9
Zoro # G314391495
product price:Â $64.29
/eaKey Features
Cutter Dia.
5.8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 208033 5,8X0,9
- Zoro #
- G314391495
- UPC #
- -
- Country of Origin
- Türkiye
Dimensions
- Cutter Dia.
- 5.8 mm
Description
Particularly suitable for slot milling and circular milling in holes. With optimized coating for universal application in virtually all materials. Tolerance, nominal diameter DC = +/, 0.04 mm. Tolerance, cutter length LC = +/, 0.02 mm. Minimum hole diameter is 6 mm. Note: aemax = 0.1xD. Always use climb milling. Engage loop of 180 Deg to achieve the full depth of cut. Make sure the depth of the slot is linear. Type: N No. of teeth Z: 3 No. of teeth Z: 3 Overhang L1: 15 mm Recess Dia. D1: 3.8 mm Overall length L: 58 mm Shank Dia. Ds: 6 mm Feed fz for slot milling in steel < 900 N/mm2: 0.025 mm
