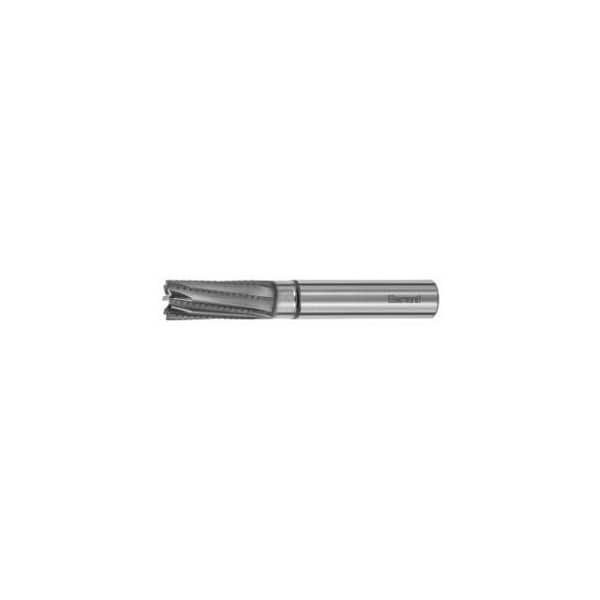

Solid Carbide Milling Cutter, for Composites, Dragging Cut, Diamond Coated, 10 mm
Mfr # 209546 10
Zoro # G914423213
product price:Â $292.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
10 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
209546 10
Zoro #
G914423213
UPC #
-
Country of Origin
Germany
Dimensions
Milling Diameter
10 mm
Description
Tool cutting edge has been specifically developed further for optimal machining of composite materials. Overall length similar to DIN 6527 long. Right-hand helix, dragging cut for standard applications. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 8 Helix angle: 8 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 8 Flute length Lc: 22 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 9.7 mm Overall length L: 72 mm Shank Dia. Ds: 10 mm
