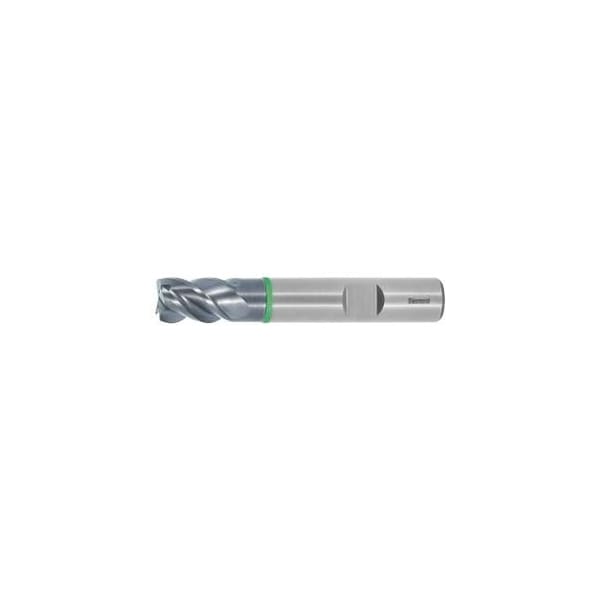

Solid Carbide MTC End Mill, AlCrN Coated, 4 mm
Mfr # 203051 4
Zoro # G514383221
product price: $46.45
/eaKey Features
Tolerance Nominal Diameter
e8
Min. Cutting Depth
0.1 mm
Corner Chamfer Angle
45 Degrees
Corner Chamfer Width at 45°
0.1 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
4 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
203051 4
Zoro #
G514383221
UPC #
-
Country of Origin
Germany
Dimensions
Tolerance Nominal Diameter
e8
Min. Cutting Depth
0.1 mm
Corner Chamfer Width at 45°
0.1 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
4 mm
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Neck Dia.
3.8 mm
Overall Length
54 mm
Shank Dia.
6 mm
Length of Cut
8 mm
Milling Diameter
4 mm
Description
For roughing and finishing up to 1.5xD into solid material at very high feed rates with smooth cutting action. For cutting force reduction and better surface quality due to 45 Deg helix. Improved coating for a further reduction in cutting force combined with increased tool life. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 Balance quality with shank: G 2.5 with HB No. of teeth Z: 4 Flute length Lc: 8 mm Overhang length L1 incl. recess: 14 mm Recess Dia. D1: 3.8 mm Overall length L: 54 mm Shank Dia. Ds: 6 mm
