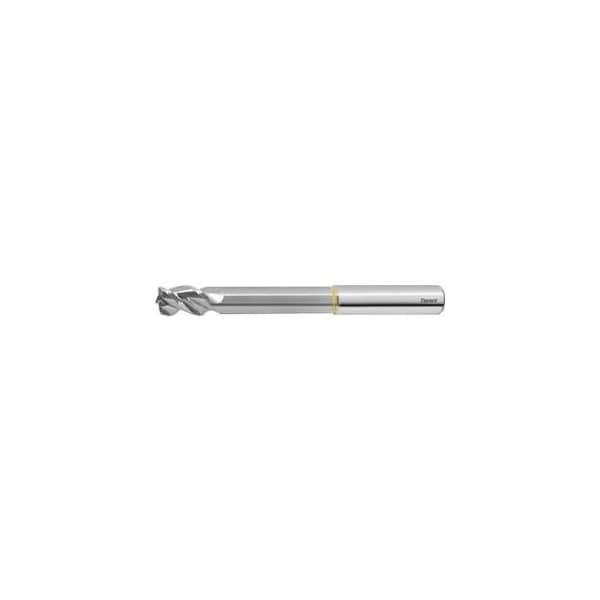

Solid Carbide MTC End Mill for Aluminum, Long Reach, Uncoated, 6 mm
Mfr # 202247 6
Zoro # G314383322
product price: $53.25
/eaKey Features
Milling Diameter
6 mm
Shank Tolerance
h6
Shank Form
HA
Maximum Cutting Depth Ap Max When Side Milling
10 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
3 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202247 6
Zoro #
G314383322
UPC #
-
Country of Origin
Germany
Dimensions
Milling Diameter
6 mm
Maximum Cutting Depth Ap Max When Side Milling
10 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
3 mm
Tolerance Nominal Diameter
h6
Corner Chamfer Width at 45°
0.2 mm
Min. Cutting Depth
0.1 mm
Length of Cut
10 mm
Neck Dia.
5.7 mm
Shank Dia.
6 mm
Overall Length
80 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. h6 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 3 Flute length Lc: 10 mm Overhang length L1 incl. recess: 42 mm Recess Dia. D1: 5.7 mm Overall length L: 80 mm Shank Dia. Ds: 6 mm
