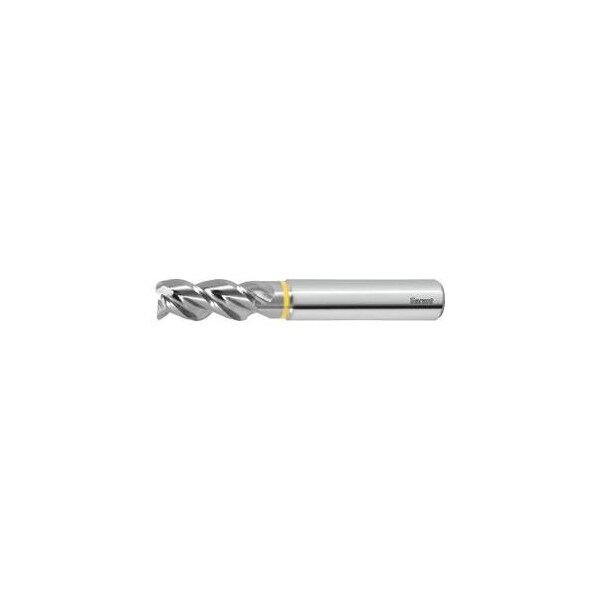

Solid Carbide MTC End Mill for Aluminum, Uncoated, 2.5 mm
Mfr # 202243 2,5
Zoro # G314383100
product price:Â $44.59
/eaKey Features
Milling Diameter
2.5 mm
Number of Flutes
3
End Mill Style
Chamfer
Length of Cut
6.5 mm
End Mill Cutting Type
MTC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202243 2,5
- Zoro #
- G314383100
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 2.5 mm
- Overall Length
- 57 mm
- Length of Cut
- 6.5 mm
- Corner Chamfer Width at 45°
- 0.05 mm
- Tolerance Nominal Diameter
- h6
- Maximum Cutting Depth Ap Max When Side Milling
- 6.5 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 1.25 mm
- Min. Cutting Depth
- 0.18 mm
- Neck Dia.
- 2.4 mm
- Shank Dia.
- 6 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Lengths similar to DIN 6527 long. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. h6 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 3 Flute length Lc: 6.5 mm Overhang length L1 incl. recess: 12.5 mm Recess Dia. D1: 2.4 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
