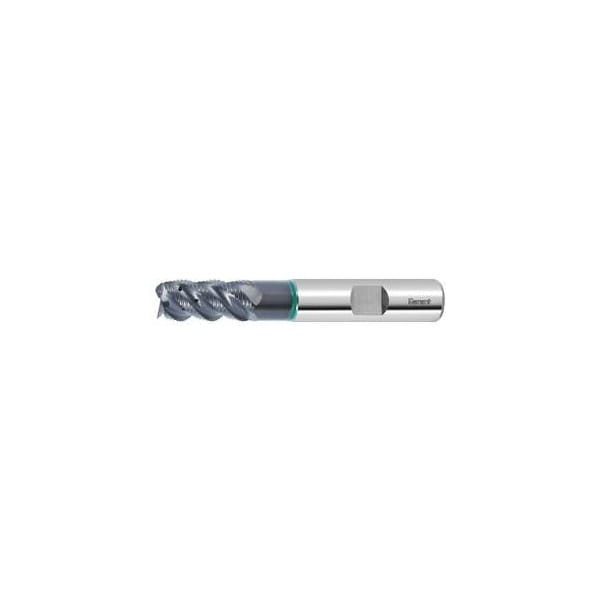

Solid Carbide Roughing End Mill, Coolant Through, for Stainless Steels, TiAlN Coated, 8 mm
Mfr # 205716 8
Zoro # G214380971
product price:Â
$
186.99
/ea
Free Shipping & Returns
Key Features
Overall Length
63 mm
Milling Diameter
8 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 205716 8
- Zoro #
- G214380971
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- TiAlN
- End Mill Cutting Type
- MTC
- Milling profile
- HR
- Correction Factor Fz
- 1.25
- Standard
- DIN 6527
- Shank Tolerance
- h6
- Color Ring
- green
- Corner Chamfer Angle
- 45 Degrees
- Type of Product
- End Mill
- Helix Angle
- 45 Degrees
- Coolant Through
- Yes
- Shank Type
- DIN 6535 HB to h6
- Cutting Direction
- horizontal, oblique and vertical
- Overall Reach
- 26 mm
- End Mill Material
- Carbide
- Feed Fz For Slot Milling in Steel < 900Â N/mm2
- 0.04 mm
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.05 mm
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.05 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.04 mm
Description
optimized special knuckle profile for roughing. Very high rate of metal removal. Can be used as a universal end mill. Special cooling channel system, to achieve the best possible high performance machining. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. d11 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 16 mm Overhang length L1 incl. recess: 26 mm Recess Dia. D1: 7.5 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm
