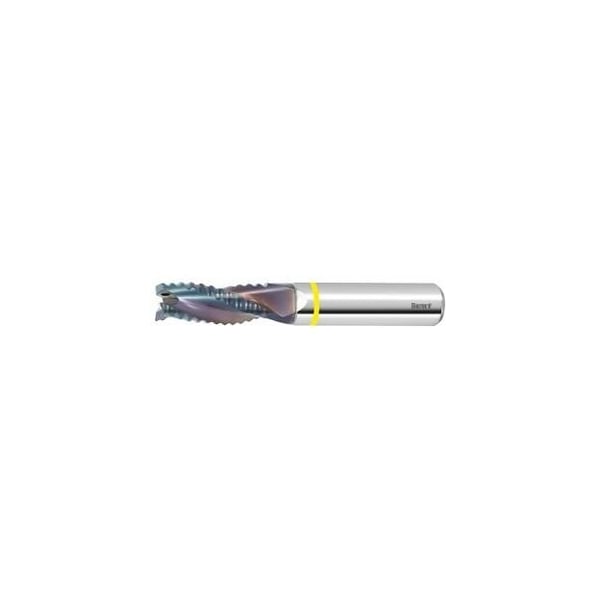

Solid Carbide Roughing End Mill for Aluminum, Coolant Through, DLC Coated, 10 mm
Mfr # 205336 10
Zoro # G214384672
product price: $141.99
/ea
Free Shipping & Returns
Key Features
Corner Chamfer Width at 45°
0.55 mm
Color Ring
yellow
Corner Chamfer Angle
45 Degrees
Feed Fz For Slot Milling in Short-Chipping Aluminium
0.07 mm
Maximum Cutting Depth Ap Max When Side Milling
22 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
205336 10
Zoro #
G214384672
UPC #
-
Country of Origin
South Africa
Dimensions
Corner Chamfer Width at 45°
0.55 mm
Maximum Cutting Depth Ap Max When Side Milling
22 mm
Tolerance Nominal Diameter
d11
Min. Cutting Depth
0.3 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
15 mm
Shank Dia.
10 mm
Length of Cut
22 mm
Overall Length
72 mm
Neck Dia.
9.8 mm
Milling Diameter
10 mm
Description
Dimensions similar to DIN 6527. Knuckle form profile. Special profile for machining non-ferrous metals. With through-coolant. With the latest generation of DLC coating sp2. Through-coolant: yes Tolerance nominal Dia. d11 No. of teeth Z: 3 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 3 Flute length Lc: 22 mm Overhang length L1 incl. recess: 32 mm Recess Dia. D1: 9.8 mm Overall length L: 72 mm Shank Dia. Ds: 10 mm
