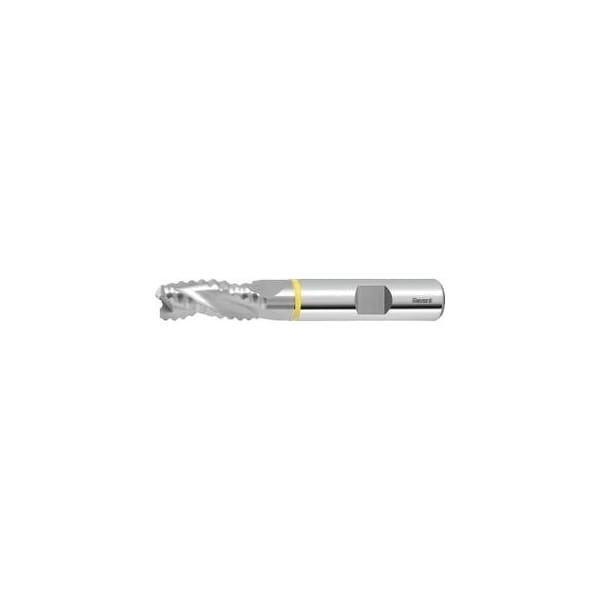

Solid Carbide Roughing End Mill for Aluminum, Coolant Through, Uncoated, 8 mm
Mfr # 205335 8
Zoro # G414384663
product price: $86.55
/ea
Free Shipping & Returns
Key Features
Overall Length
63 mm
Milling Diameter
8 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
uncoated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
205335 8
Zoro #
G414384663
UPC #
-
Country of Origin
South Africa
Dimensions
Overall Length
63 mm
Milling Diameter
8 mm
Length of Cut
16 mm
Shank Dia.
8 mm
Neck Dia.
7.8 mm
Corner Chamfer Width at 45°
0.45 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
12 mm
Maximum Cutting Depth Ap Max When Side Milling
16 mm
Tolerance Nominal Diameter
d11
Min. Cutting Depth
0.5 mm
Description
Dimensions similar to DIN 6527. Knuckle form profile. Special profile for machining non-ferrous metals. With through-coolant. Through-coolant: yes Tolerance nominal Dia. d11 No. of teeth Z: 3 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 16 mm Overhang length L1 incl. recess: 27 mm Recess Dia. D1: 7.8 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm
