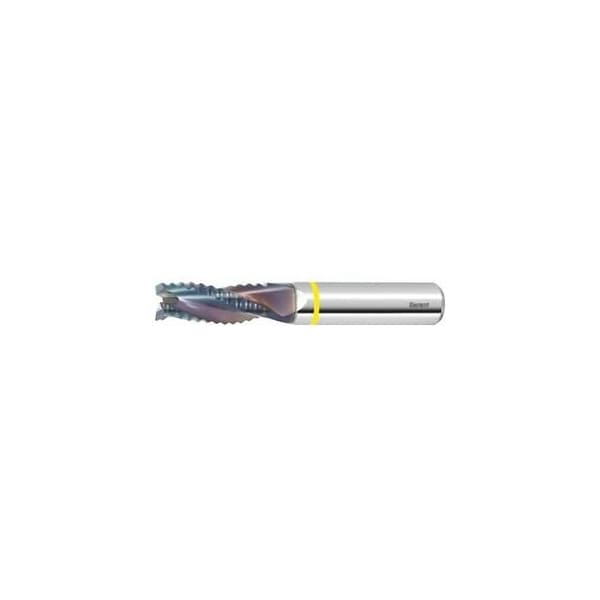

Solid Carbide Roughing End Mill, for Aluminum, DLC Coated, 4 mm
Mfr # 205331 4
Zoro # G914384866
product price:Â $60.15
/eaKey Features
Milling Diameter
4 mm
Overall Length
57 mm
End Mill Style
Chamfer
Neck Dia.
3.8 mm
Shank Dia.
6 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 205331 4
- Zoro #
- G914384866
- UPC #
- -
- Country of Origin
- South Africa
Dimensions
- Milling Diameter
- 4 mm
- Overall Length
- 57 mm
- Neck Dia.
- 3.8 mm
- Shank Dia.
- 6 mm
- Length of Cut
- 11 mm
- Corner Chamfer Width at 45°
- 0.35 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 6 mm
- Min. Cutting Depth
- 0.35 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 11 mm
- Tolerance Nominal Diameter
- d11
Description
Dimensions similar to DIN 6527. Knuckle form profile. Special profile for machining non-ferrous metals. With the latest generation of DLC coating sp2. Through-coolant: no Tolerance nominal Dia. d11 No. of teeth Z: 3 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 3 Flute length Lc: 11 mm Overhang length L1 incl. recess: 20 mm Recess Dia. D1: 3.8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
