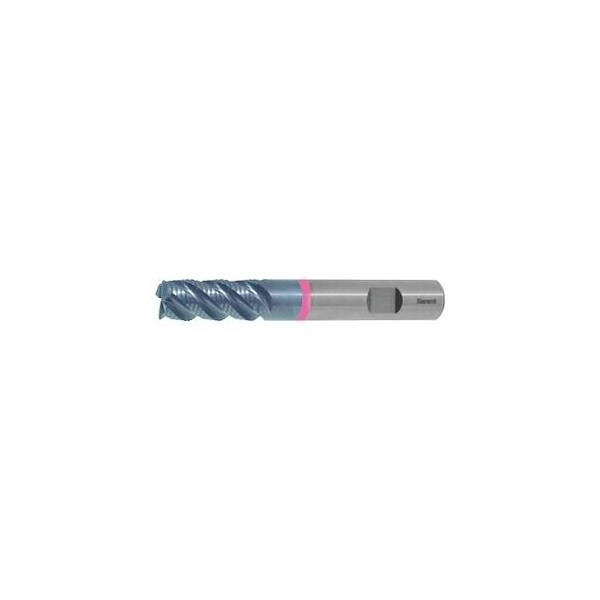

Solid Carbide Roughing End Mill, for Titanium, TiAlN Coated, 8 mm
Mfr # 205711 8
Zoro # G614381226
product price:Â
$
144.99
/ea
Free Shipping & Returns
Key Features
Overall Length
64 mm
Milling Diameter
8 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 205711 8
- Zoro #
- G614381226
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- TiAlN
- End Mill Cutting Type
- MTC
- Helix Angle
- 45 Degrees
- Shank Type
- DIN 6535 HB to h6
- End Mill Material
- Carbide
- Coolant Through
- No
- Overall Reach
- 26 mm
- Cutting Direction
- horizontal, oblique and vertical
- Milling profile
- HR
- Feed Fz For Side Milling in Titanium > 850Â N/mm2
- 0.025 mm
- Color Ring
- pink
- Type of Product
- End Mill
- Feed Fz For Slot Milling in Titanium > 850Â N/mm2
- 0.02 mm
- Standard
- DIN 6527
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 45 Degrees
- Correction Factor Fz
- 1.25
- Feed Fz For Side Milling in Titanium > 850 N/mm2
- 0.025 mm
- Feed Fz For Slot Milling in Titanium > 850 N/mm2
- 0.02 mm
Description
Dimensions similar to DIN 6527. optimized special knuckle profile for roughing. Very high rate of metal removal. With semi-roughing knuckle profile and 45 Deg flutes for superalloys. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Note: fz for ap max = 0.5xD. Tolerance nominal Dia. d11 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 16 mm Overhang length L1 incl. recess: 26 mm Recess Dia. D1: 7.5 mm Overall length L: 64 mm Shank Dia. Ds: 8 mm
