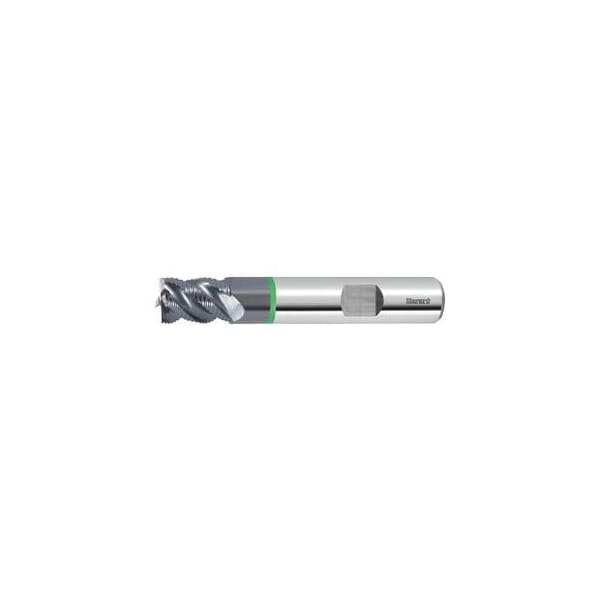

Solid Carbide Roughing End Mill, TiAlN Coated, 16 mm
Mfr # 205710 16
Zoro # G614381295
product price: $237.99
/ea
Free Shipping & Returns
Key Features
End Mill Cutting Type
MTC
Coolant Through
No
Shank Type
DIN 6535 HB to h6
Number of Flutes
5
Overall Length
83 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
205710 16
Zoro #
G614381295
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
83 mm
Length of Cut
19 mm
Milling Diameter
16 mm
Shank Dia.
16 mm
Tolerance Nominal Diameter
d11
Min. Cutting Depth
0.5 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
16 mm
Maximum Cutting Depth Ap Max When Side Milling
19 mm
Corner Chamfer Width at 45°
0.35 mm
Description
Dimensions similar to DIN 6527. optimized special knuckle profile for roughing. Very high rate of metal removal. Can be used as a universal end mill. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. d11 No. of teeth Z: 5 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 5 Flute length Lc: 19 mm Overall length L: 83 mm Shank Dia. Ds: 16 mm Corner chamfer width at 45 Deg: 0.35 mm Feed fz for slot milling in steel < 900 N/mm2: 0.08 mm
