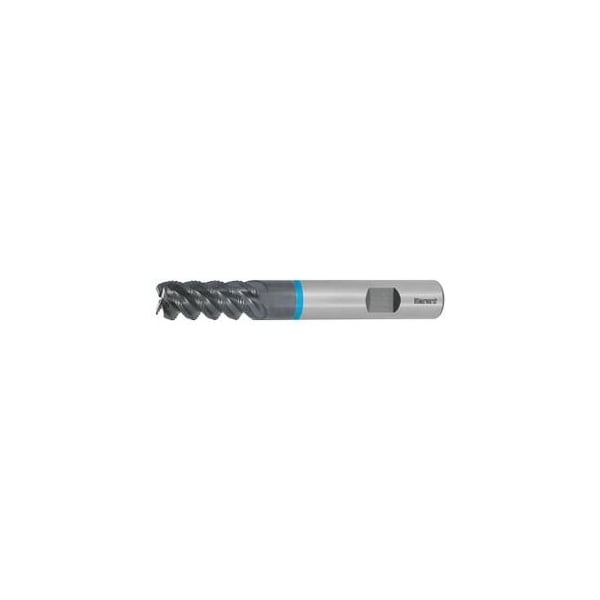

Solid Carbide Roughing End Mill, TiAlN Coated, 8 mm
Mfr # 205712 8
Zoro # G014381291
product price:Â
$
143.99
/ea
Free Shipping & Returns
Key Features
Overall Length
64 mm
Milling Diameter
8 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 205712 8
- Zoro #
- G014381291
- UPC #
- -
- Country of Origin
- Germany
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- TiAlN
- End Mill Cutting Type
- MTC
- Helix Angle
- 50 Degrees
- Milling profile
- HR
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 45 Degrees
- Correction Factor Fz
- 1.25
- Type of Product
- End Mill
- Feed Fz For Side Milling in inox > 900Â N/mm2
- 0.03 mm
- Standard
- DIN 6527
- Color Ring
- blue
- Feed Fz For Slot Milling in Stainless Steel > 900Â N/mm2
- 0.022 mm
- End Mill Material
- Carbide
- Shank Type
- DIN 6535 HB to h6
- Cutting Direction
- horizontal, oblique and vertical
- Overall Reach
- 26 mm
- Coolant Through
- No
- Feed Fz For Slot Milling in Stainless Steel > 900 N/mm2
- 0.022 mm
- Feed Fz For Side Milling in inox > 900 N/mm2
- 0.03 mm
Description
Dimensions similar to DIN 6527. optimized special knuckle profile for roughing. Very high rate of metal removal. With special internal tooth profile and 50 Deg flutes for reliable chip breaking in stainless steels. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. d11 No. of teeth Z: 4 Helix angle: 50 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 16 mm Overhang length L1 incl. recess: 26 mm Recess Dia. D1: 7.5 mm Overall length L: 64 mm Shank Dia. Ds: 8 mm
