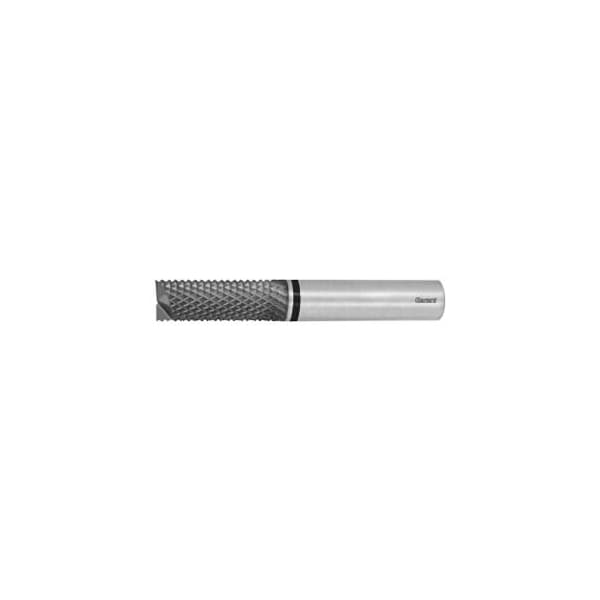

Solid Carbide Router Cutter, Compacting Cut, Diamond Coated, 20 mm
Mfr # 209512 20
Zoro # G014423526
product price: $539.99
/ea
Free Shipping & Returns
Key Features
Type of Product
Router
Cutting Width Ae for Milling Operation
0.5×D for side milling
Coolant Through
no
Milling profile
staggered teeth
Correction Factor Fz
1.25
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
209512 20
Zoro #
G014423526
UPC #
-
Country of Origin
Germany
Dimensions
Cutting Width Ae for Milling Operation
0.5×D for side milling
Maximum Cutting Depth Ap Max When Side Milling
45 mm
Tolerance Nominal Diameter
h10
Min. Cutting Depth
0.01 mm
Length of Cut
45 mm
Diameter
20 mm
Shank Dia.
20 mm
Overall Length
104 mm
Details
Type of Product
Router
Coolant Through
no
Milling profile
staggered teeth
Correction Factor Fz
1.25
Shank Tolerance
h6
Toothing Grit Designation
fine
Color Ring
black
Corner Chamfer Angle
90 Degrees
Feed F For Side Milling in GRP CRP
0.56 mm/rev.
Shank Type
DIN 6535 HA with h6
Number of Flutes
2
Finish
Diamond
End Mill Material
Carbide
Cutting Direction
horizontal, oblique and vertical
End Style
Square
Description
High performance diamond-pattern cut for efficient roughing of Fiber-reinforced composites. Balance quality with shank: G 2.5 with HA Flute length Lc: 45 mm Overall length L: 104 mm Shank Dia. Ds: 20 mm Feed f for side milling in GRP CRP: 0.56 mm/rev.
