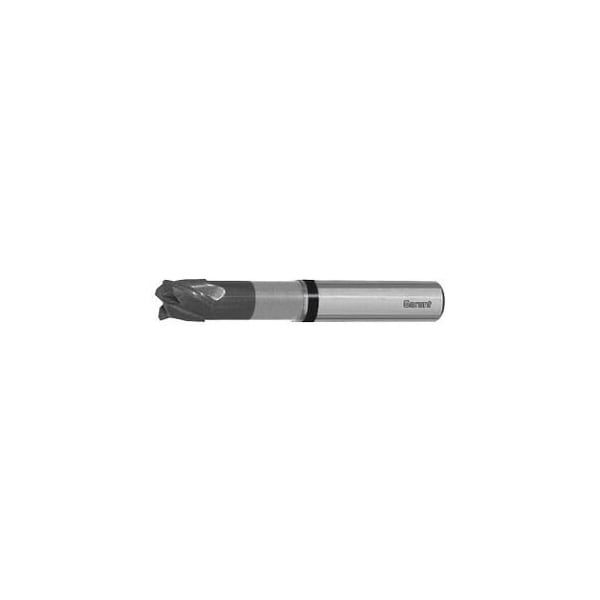

Solid Carbide Torus End Mill, Diamond Coated, 10/2.0 mm
Mfr # 209755 10/2,0
Zoro # G014385367
product price: $227.99
/ea
Free Shipping & Returns
Key Features
Helix Angle
30 Degrees
Neck Dia.
9.2 mm
Shank Type
DIN 6535 HA to h6
Overall Reach
32 mm
End Mill Material
Carbide
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
209755 10/2,0
Zoro #
G014385367
UPC #
-
Country of Origin
Germany
Dimensions
Neck Dia.
9.2 mm
Milling Diameter
10 mm
Overall Length
72 mm
Shank Dia.
10 mm
Corner Radius
2 mm
Length of Cut
11 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.5 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Min. Cutting Depth
0.01 mm
Description
With the latest generation of crystalline diamond coating sp3, for process reliability in machining Fiber-reinforced composites, CRP, GRP and graphite. Double relief ground side clearance angle. Tolerance: Corner radius R1 = ±0.01 mm. No. of teeth Z: 4 Helix angle: 30 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 11 mm Corner radius R1: 2 mm Overhang length L1 incl. recess: 32 mm Recess Dia. D1: 9.2 mm Overall length L: 72 mm
