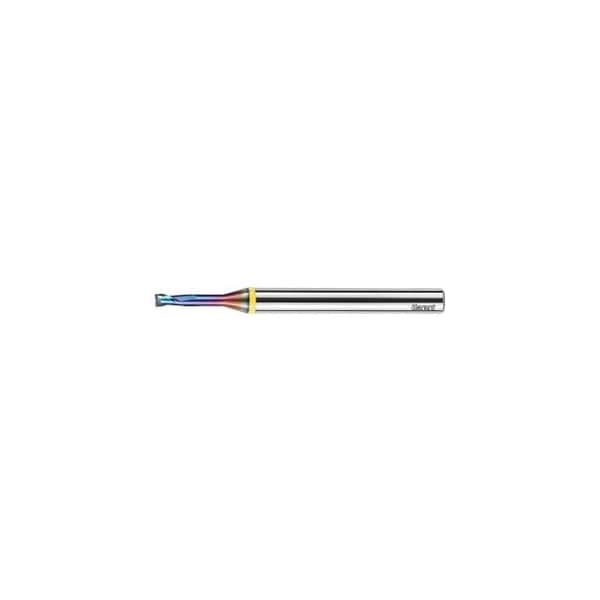

Solid Carbide Torus End Mill, for Aluminum, DLC Coated, 1 x 2 mm
Mfr # 206044 1X2
Zoro # G314383414
product price: $66.49
/eaKey Features
End Mill Material
Carbide
Number of Flutes
2
Corner Radius
0.3 mm
Milling Diameter
1 mm
Cutting Direction
horizontal, oblique and vertical
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206044 1X2
Zoro #
G314383414
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
0.3 mm
Milling Diameter
1 mm
Overall Length
50 mm
Length of Cut
1 mm
Neck Dia.
0.95 mm
Shank Dia.
4 mm
Maximum Cutting Depth Ap Max When Side Milling
0.5 mm
Min. Cutting Depth
0.005 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.25 mm
Tolerance Nominal Diameter
0 / -0.005
Description
With advanced DLC sp2 coating. For the highest demands regarding performance and precision in aluminium materials. Extremely tight tolerances ensure maximum accuracy. Double-relief ground with 2 chamfers hollow ground. Recess angle a = 16 Deg. Tolerances: Corner radius: R1 = ±0.0025 mm. Neck Dia. D1 = 0 / -0.01 mm. Note: At greater tool overhang lengths, use a reduced value for ap! Values for: slots milled from solid: ap = 0.25xD x ap korr side milling: ap = 0.50xDxap korr copying: ap = 0.25 x D x ap korr To calculate the feed rate vf please use the actual speed of the machine the maximum possible speed! e.g: vf = 18000 rpmx fz mm/Zx z No. of teeth Z: 2 Helix angle: 30 degrees Shank: DIN 6535 HA to h5 No. of teeth Z: 2 Flute length Lc: 1 mm Corner radius R1: 0.3 mm Overhang length L1 incl. recess: 2 mm Recess Dia. D1: 0.95 mm Overall length L: 50 mm
