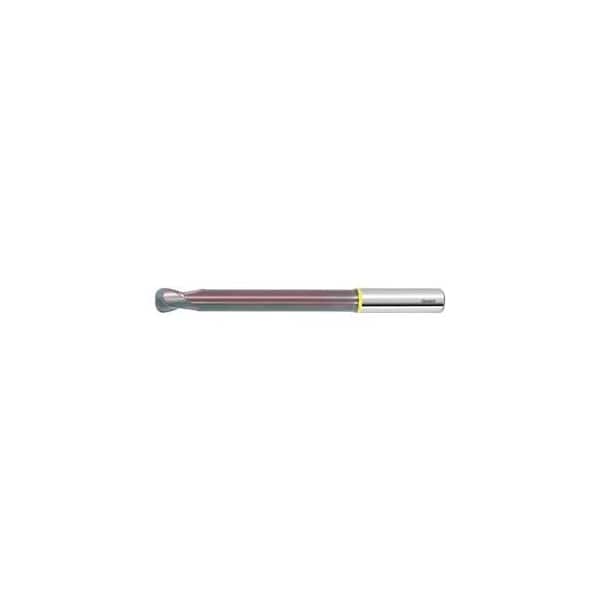

Solid Carbide Torus End Mill, for Aluminum, DLC Coated, 6/0.3 mm
Mfr # 206075 6/0,3
Zoro # G314384831
product price: $159.99
/ea
Free Shipping & Returns
Key Features
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
7 mm
Color Ring
yellow
Type of Product
Torus cutter
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.3 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206075 6/0,3
Zoro #
G314384831
UPC #
-
Country of Origin
Germany
Dimensions
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
7 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.3 mm
Shank Dia.
6 mm
Length of Cut
7 mm
Milling Diameter
6 mm
Overall Length
120 mm
Neck Dia.
5.5 mm
Corner Radius
0.3 mm
Min. Cutting Depth
0.01 mm
Details
Color Ring
yellow
Type of Product
Torus cutter
Feed Fz For Copy Milling in Short-Chipping Aluminium
0.034 mm
Correction Factor Fz
1.25
Overall Reach
80 mm
Finish
DLC
Number of Flutes
2
Type
W
Helix Angle
30 Degrees
Cutting Direction
horizontal, oblique and vertical
Coolant Through
No
Shank Type
DIN 6535 HA to h6
End Mill Style
Corner Radius
End Mill Material
solid carbide
Description
With the latest generation of DLC coating sp2. With double relief ground side clearance angle and corner radius. High stability due to strengthened core. Tolerance: R1 = ±0.01 mm. No. of teeth Z: 2 Helix angle: 30 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 2 Flute length Lc: 7 mm Corner radius R1: 0.3 mm Overhang length L1 incl. recess: 80 mm Recess Dia. D1: 5.5 mm Overall length L: 120 mm
