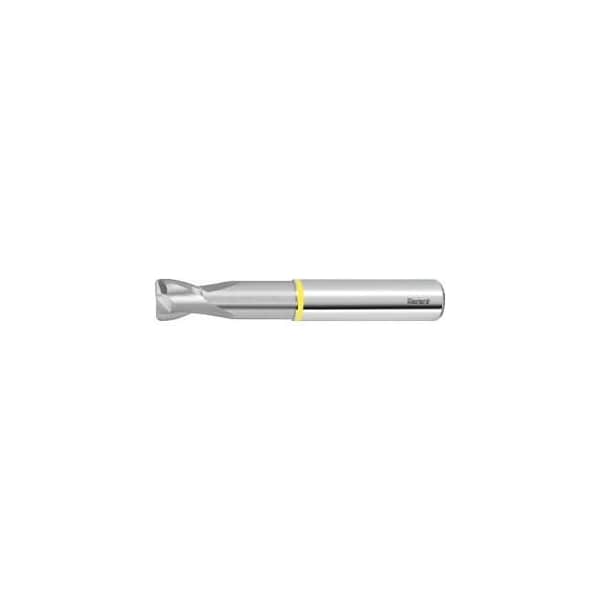

Solid Carbide Torus End Mill, for Aluminum, Uncoated, 10/1.5 mm
Mfr # 206040 10/1,5
Zoro # G014381857
product price: $108.99
/ea
Free Shipping & Returns
Key Features
Min. Cutting Depth
0.01 mm
Shank Tolerance
h6
Feed Fz For Copy Milling in Short-Chipping Aluminium
0.056 mm
Color Ring
yellow
Tolerance Nominal Diameter
e8
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206040 10/1,5
Zoro #
G014381857
UPC #
-
Country of Origin
Germany
Dimensions
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Corner Radius
1.5 mm
Milling Diameter
10 mm
Length of Cut
11 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.5 mm
Overall Length
72 mm
Neck Dia.
9.2 mm
Shank Dia.
10 mm
Description
With double relief ground side clearance angle and corner radius. High strength due to strengthened core. Tolerance: R1 = ±0.01 mm. No. of teeth Z: 2 Helix angle: 30 degrees Shank: DIN 6535 HA to h6 No. of teeth Z: 2 Flute length Lc: 11 mm Corner radius R1: 1.5 mm Overhang length L1 incl. recess: 32 mm Recess Dia. D1: 9.2 mm Overall length L: 72 mm
