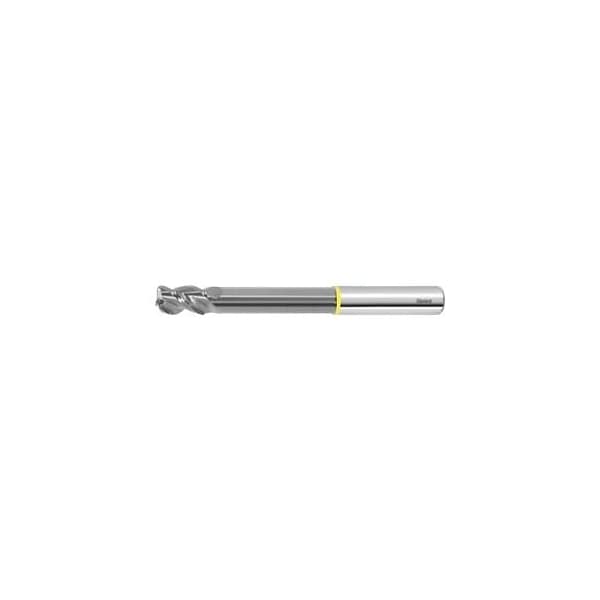

Solid Carbide Torus End Mill, for Aluminum, Uncoated, 16/2.0 mm
Mfr # 206192 16/2,0
Zoro # G314382677
product price: $338.99
/ea
Free Shipping & Returns
Key Features
Type of Product
Torus cutter
Shank Tolerance
h6
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.48 mm
Correction Factor Fz
1.25
Tolerance Nominal Diameter
h6
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
206192 16/2,0
Zoro #
G314382677
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Slot Milling From Solid
0.48 mm
Tolerance Nominal Diameter
h6
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
25 mm
Length of Cut
25 mm
Overall Length
150 mm
Shank Dia.
16 mm
Milling Diameter
16 mm
Corner Radius
2 mm
Neck Dia.
15 mm
Description
Eccentric relief ground, additionally polish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Tolerances: Corner radiusR1 = 0.5 tolerance ±0.02. R1 > 0.5 1.5 tolerance ±0.03. R1 > 1.5 tolerance ±0.05. Dimensions to manufacturer's standard. No. of teeth Z: 3 Helix angle: 45 degrees Shank: DIN 6535 HA to h6 Balance quality with shank: G 2.5 with HA No. of teeth Z: 3 Flute length Lc: 25 mm Corner radius R1: 2 mm Overhang length L1 incl. recess: 100 mm Recess Dia. D1: 15 mm Overall length L: 150 mm
